Perspective Projection Matrix (Math for Game Developers)

Показать описание

In this video you'll learn what a projection matrix is, and how we can use a matrix to represent perspective projection in 3D game programming.

You'll understand the derivation of a perspective projection matrix in 3D computer graphics. The matrix I'll derive is as used by left-handed coordinate systems like DirectX (OpenGL uses a right-handed system).

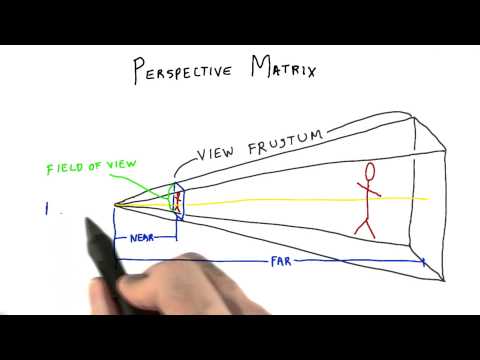

In perspective projection, objects that are far away appear smaller, and objects that are close to us appear bigger. We will learn how to perform this type of 3D projection using a projection matrix.

This is a very useful tool for 3D programmers, game developers, and other computer graphics professionals. Understanding the math behind how projection is achieved is important, and I want you to own this knowledge at the end of this video!

Don't forget to subscribe to receive updates and news about new courses and tutorials:

Enjoy!

Рекомендации по теме

Комментарии

This was *exactly* what I was looking for! Most tutorials are either way too simplistic, are focused on using specific game engines, or are so incredibly advanced that you need a PhD level to understand them. Your tutorial hit that exact sweet spot in the middle, where you get complete, detailed info, but can still understand it without already having ten years of experience. This vid made me subscribe.

Password_

To those still scratching their heads after watching the end of this video and putting the perspective divide in your [vertex] shader here is the conclusion he left out:

The output of the vertex shader is expected to be in Clip Space -- not NDC space (that is, with the projection matrix applied to the camera space vec4 but without perspective divide). Then, AFTER the fragment shader has run and the depth of each fragment has been determined the perspective divide is handled implicitly by the shader pipeline by dividing the values in the depth buffer by the w value stored in the output of the vertex stage.

Also, contrary to his statements, both modern OpenGL and DirectX assume Clip Space to be a left-handed coordinate system. Vulkan assumes Clip Space to be right handed (with the positive Y axis facing down). Rather, OpenGL's Clip Space expects the near and far plane to be mapped into the -1, 1 range whereas DirectX and Vulkan expect the near and far plane to be mapped into the 0, 1 range.
