Ford 5.4L Timing Chain Replacement, Cloyes 9-0391SB

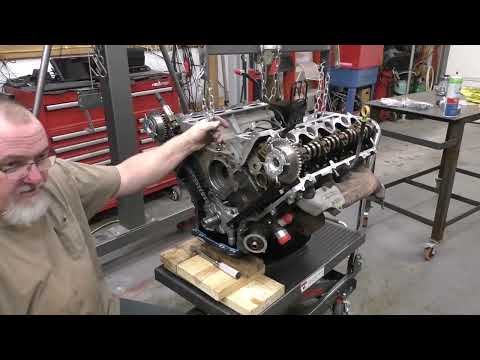

🔥 This technical video from Cloyes covers the removal and installation of the timing drive system for Ford's 4.6/5.4/6.8L engine.

⛓ Part numbers related to this video are: 9-0387S, 9-0387SA, 9-0387SAX, 9-0387SB, 9-0387SC, 9-0387SD, 9-0387SE, 9-0387SF, 9-0387SG, 9-0387SGX, 9-0387SH, 9-0387SHX, 9-0387SJ, 9-0387SK, 9-0387SKVVT, 9-0387SKVVT1, 9-0391S, 9-0391SB, 9-0391SBVVT, 9-0391SBVVT1, 9-0391SC, 9-0391SCX, 9-0391SD, 9-0391SE, 9-0391SF, 9-0391SG, 9-0391SH, 9-0391SX, 9-5319, 9-5320, 9-5338, 9-5339, 9-5340, 9-5341, 9-5371, 9-5372, 9-5391, 9-5392, 9-5393, 9-5394, 9-5395, 9-5396, 9-5397, 9-5428, 9-5429, 9-5430, 9-5431, 9-5432, 9-5433, 9-5459, 9-5461, 9-5462, 9-5463, 9-5464, C189, C387, C391, S764T, S766T, S790, S790A, S843, S869, VC100, VTS100

🚗 Application coverage ranges from the model years 1993-2018 and the following vehicles:
