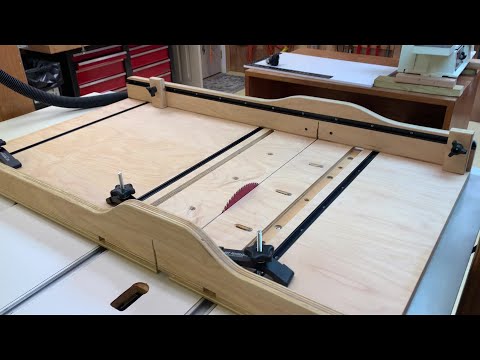

Ultra Square Medium Sized Crosscut Sled

In This week’s woodworking build I show you how to make this ultra square medium sized crosscut sled paired with a Katz-Moses No Deflection Universal Stop Block. I use William Ng’s 5 cut method to square the fence. Having a crosscut sled in the shop is a MUST for any woodworker. They help you safely and repeatedly cross cut parts. They also create a zero clearance so you don’t get tear out. I got rid of my miter saw as soon as I built a good crosscut sled. I really can’t wait to see what you create! Let me know what you’d like to see next. Thanks for watching! Please like, comment and subscribe. Cheers!
----
*5-Cut Method Formula*
((A-B)/4)/Length of Final Offcut = Error Per Inch
E.P.I. x Length from Pivot Screw To End of Fence = Total Distance you Move Fence
If Positive # - Move Away from User
If Negative # - Move Towards User
----
----
----
----
----
----
Check me out on social media:
----
Tools I love:
MY CNC MACHINES (I highly recommend both)
----
Camera Gear:

Musicbed SyncID:
MB01YOU4NZNNWZ6

[katzmosestools]

*5-Cut Method Formula*
((A-B)/4)/Length of Final Offcut = Error Per Inch
E.P.I. x Length from Pivot Screw To End of Fence = Total Distance you Move Fence
If Positive # - Move Away from User
If Negative # - Move Towards User
*Here's a link to two 5 cut Method Calculators Sent by Viewers to Help Out* The second one starts with my numbers from the 2nd try in the video so you can compare what I did to yours.

[dustinhenderson]

Guys, Moses, Tamar ( 3x3 Custom ), & Jason Hibbs ( Bourbon Moth Woodworking ) are the strongest You Tube channels to follow. I've been doing construction for over 22+ years and they have humbled me happily. With their ability to teach an old dog new tricks. Using Katz 5 cut calculator on his web site and Tamars sled blueprints. I got my sled squared down to 1/512". I am so damn excited. I could write a short story about the impact these 3 have had on me, but I'll simply say,
" Thank you guys "

[chandlerkeyes]

Absolute love the “we don’t hide our mistakes”. There are so many times when I feel defeated by a project so hearing these pros talk about their mistakes is really motivational in those times.

[Deafgreekboy]

Have to agree with Jonathan—Tamar is fantastically creative and clever.

[lesblack]

To take the play out of the runners, just iron on a strip of melamine edge banding to the edges of the runners, trim off the excess and sand the edges. When waxed, the edge banding also runs smoothly. If slightly tight, just sand each side that was edged. Works for me. This is a good video and great for newcomers to woodworking!! Cheers from Australia.

[Justin-ibzs]

I'm always amazed by the quality of plywood in videos. Even my woodworkers source does not carry ply with this many layers and no voids.

[curnowornever]

Bought a Katz Moses stop block. I LOVE it. Best stop block by a country mile! Very reasonable price, too. The stop block has as much integrity as the creator and that's saying a lot!

[goali]

Yesterday I was chasing 90 degrees with no luck and realized I forgot to divide by 4. Today I got back at it and got to 0.00104 using playing cards. Thanks for the instruction!

[Mbmoney]

I just got a KM stop block today and then I checked and this video came out. I need to make a cross cut sled too. The KM channel knows all.

[Munstre]

Finally ordered my stop block, don't know what I've been waiting for. Your videos have been so helpful over my last few years of woodworking, I appreciate all of the info you've been providing along the way!

[JeremyIglehart]

Thanks Mr. Katz-Moses!!! I used your method to make my first cross-cut sled and got -0.0005 :) I’ll call it good enough!

[alfredobanuelos]

Thank you for all the content you put out. I recently had to make two sleds. I had to watch this video over and over. I just couldn’t make it work. I ales watched William Nag’s video. You are cutting on the right side of the blade. William cuts on the left side. You instruct the viewer to move the fence towards the user if you get negative number and away if you get a positive number. William instructs the opposite. I did figure out why. But I think it should have been explained why. Not a critique. I value you sharing your love for wood working. I’ve learned so much from you.

[retiredrookie]

Alright I'm here. Nobody panic. Got Mother's Day festivities going. Sorry I'm late.

Love the build. Only thing I did different is put 2 T-tracks running parallel to the runners so I could add more clamping options. Also a safety block for the blade coming through is worth mentioning.

[jezza]

Awesome video, thanks for sharing.
I am in the process of making my first cross cut sled so this is mega helpful.
I am from the UK and am really pleased you ship to us, so I’ve just ordered your stop block and T track 🙏

[TheBigIdeawithMacFrazier]

I have watched over 30 videos on crosscut sleds. I blame a combination of COVID boredom and my dissatisfaction with the first one I built several years ago and no longer have. I have to say that THIS is the best one I've seen. It's not the fanciest, by any means. In fact it is exactly the right amount of fancy. Plus it was clear, straightforward, and well produced. Thanks!

[chriszen]

And just like that the salesman for red t track was jobless!!!  Great video as usual.  I love my stop block and Tamars videos.

[Bob-thvi]

I really enjoyed and learned a lot from your video. Just finished my sled using your stop block and now will spend time to make sled square with fence. Can’t believe that after all these years I did not have a sled with the features to make the work more precise and enjoyable.
Thank you...love your stop block. Bob

[jimdevito]

I love how all of builders/content creators support and give each others shout out and props!

[stevedaniell]

Great vid. Built Tamar’s multi-sled today and used your 5 cut method and got .0012 after first adjustment. Sold me on the stop block. Can’t wait to try it!

[Hizzlesticks]

The shimming the runner trick before attaching just saved me the same mistake. Thank you!!
