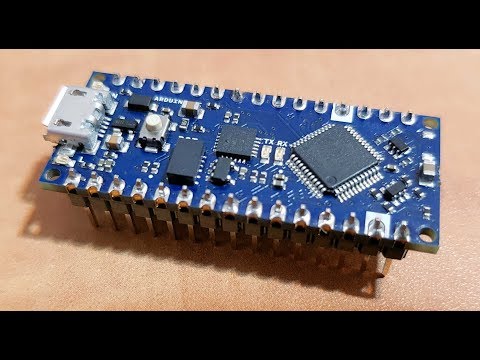

Programming Arduino NANO Every (ATMega4809) using UPDI

preview_player
Показать описание

  1. Kuan-Ting Lai
Рекомендации по теме
Fast, Efficient, and 0:06:15

Fast, Efficient, and Affordable: Unveiling the Arduino Nano Every

Considering Arduino Nano? 0:07:47

Considering Arduino Nano? Watch this First!

The All New 0:01:17

The All New Arduino nano every

Arduino Nano Every 0:16:37

Arduino Nano Every Setup and Testing

NEW ARDUINO NANO 0:16:17

NEW ARDUINO NANO BOARDS EVERY AND 33 IOT

Programming Arduino NANO 0:06:17

Programming Arduino NANO Every (ATMega4809) using UPDI

Arduino Tutorial - 0:42:02

Arduino Tutorial - Answering Beginner's Questions - ATmega4809 PWM

Arduino Nano Every: 0:07:55

Arduino Nano Every: Honest Review and actual info!

Arduino megaAVR Watchdog 0:13:00

Arduino megaAVR Watchdog & Resets, e.g. Nano Every ATmega4809 – Errata

Using watchdog of 0:02:29

Using watchdog of Arduino Nano Every (ATMEGA4809)

Arduino Nano Every 0:11:43

Arduino Nano Every NeoPixel Driver Without Bit Banging

Arduino Nano Every: 0:10:00

Arduino Nano Every: Four Hardware Serial Ports – Without Additional Hardware

#420 ATmega4808, The 0:09:13

#420 ATmega4808, The New Arduino Chip?

Arduino megaAVR Watchdog 0:35:44

Arduino megaAVR Watchdog & Resets, e.g. Nano Every ATmega4809

Arduino: Program Nano 0:02:07

Arduino: Program Nano Every using UPDI port

Arduino megaAVR Brownout 0:17:10

Arduino megaAVR Brownout Detector, e.g. Nano Every ATmega4809 – First Look

Arduino: ATMega4809 via 0:03:12

Arduino: ATMega4809 via Nano Every marked as 20Mhz, but does this confirm it is actually at 16Mhz?

Arduino Nano Every 0:00:36

Arduino Nano Every getting started

Arduino Nano Every 0:01:21

Arduino Nano Every

Thinary Nano Every 0:07:44

Thinary Nano Every ATmega4808

Soldering pins to 0:00:26

Soldering pins to Arduino Nano Every board

Programming the new 0:07:59

Programming the new ATtiny from Arduino using UPDI [Beginner Tutorial]

Arduino: Can't Upload 0:02:05

Arduino: Can't Upload Sketches to Arduino Nano Every

Arduino: 16 bit 0:02:51

Arduino: 16 bit PWM on Nano Every

Комментарии
Автор

The flashing method is interesting, but not safe.
According to the documentation, JTAG2UPDI must have a resistor on the UPDI line (~4.7kΩ). But with this resistor, the ATmega4809 controller in Arduino Every cannot be flashed.
According to the Arduino Every schematic, the UPDI pin is connected via a transistor to the USB controller. Because of this, the line cannot be pulled below 2.7 V (3.3 V - 0.6 V) unless you apply a current that the USB controller cannot handle (around 30 mA).
Directly connecting the ATmega328 pin to the UPDI pin allows for a higher current (greater than the absolute maximum).
However, in this case, both the programmer (ATMega328) and the Arduino Every USB controller may be damaged.

-Oleksandr-.
