Analog Sensor Reading| Arduino|Node-Red| Serial Coomunication|Node_Red-UI

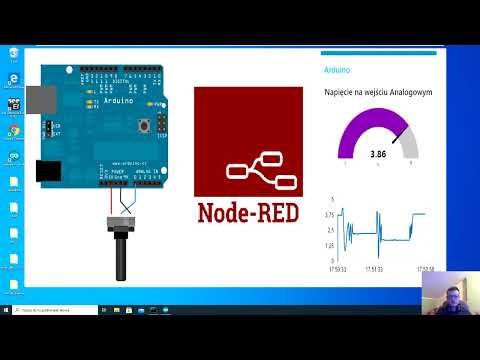

this tutorial shows you how to read analog sensors awith an arduino board and send data to Node-red dashboard via serial communication. You need to install Nodejs in your computer before installing node-red.

This is the arduino code used .
=================================

int newval = 0;
void setup() {
// Initialize Serial port
}

void loop() {
newval = newval+4;
if(newval == 500){
newval=0;
}
int fixed =40;
int sensorValue = analogRead(A0);
int sensorValue1 = analogRead(A1);
// Convert the analog reading (which goes from 0 - 1023) to a voltage (0 - 5V):
// float voltage = sensorValue * (5.0 / 1023.0);
delay(2000);
}

This is the node used in node-red . Copy them and paste in node-red flows
==========================================
