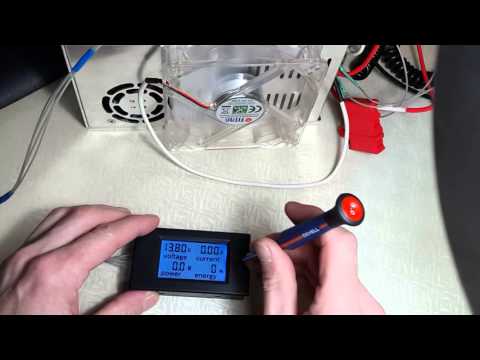

Review of Peacefair PZEM-051 100A DC Current Power meter

Tested with 75mV 50A Shunt and 75mV 100A shunt at 60A, 50A, 40 A, 30A, 20A, 10A, 5A, 2A, 1A, 0.5A, 0.1A.

The best thank you for me is to not to skip ads and Subscribe 🔔 to my channel, like 👍 the video It is greatly appreciated. 🔔 😊.
I will reply to all Subscriber's 🔔 questions. So make sure to Subscribe and enable the bell 🔔.😊

The voltage across shunt resistor is measured using NI myDAQ.
*** Purchase it from ***

00:00 Start
00:33 Introduction
04:27 Wiring explained
06:25 Current measurement demonstration
08:59 Measuring voltage across shunt
09:44 Current measurement: 50A Shunt

on eBay:

*** Related Videos:
PZEM 061 AC power meter review video:

PUUCAI P06S-100 100A Review video:
Tutorial by Ahmad Shamshiri form Canada
****************************
****************************
