How to make an XT60/XT90 Dual Outlet Connector

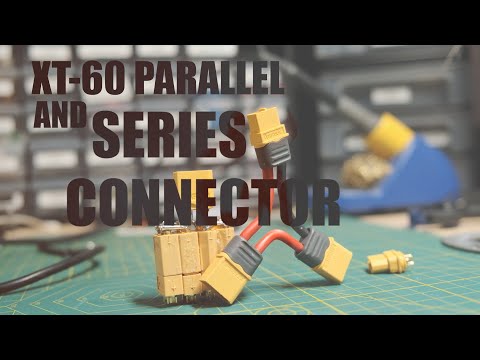

DIY XT60 Dual Outlet Connector. In the video, I make up the connector with XT60's but the process is exactly the same for the larger XT90's (of course)

This is just a quick little video that explains how to make a compact XT60 dual outlet connector that will allow you to power two items off of one battery. In my case, I wanted to tidy up the wiring on my FPV tray and will use the connector to get power from one 3s lipo to a video monitor and a video receiver.

The only trick here is to spin the barrels in all the connectors 180 degrees to make it easier to solder.

You can use the same method shown in the video to make a parallel connector (instead of using a harness). It's nice to get rid of all the wire you can. (less weight and clutter)

If you like the tip, a thumbs up would be awesome, thanks!

Cheers,

Bob
