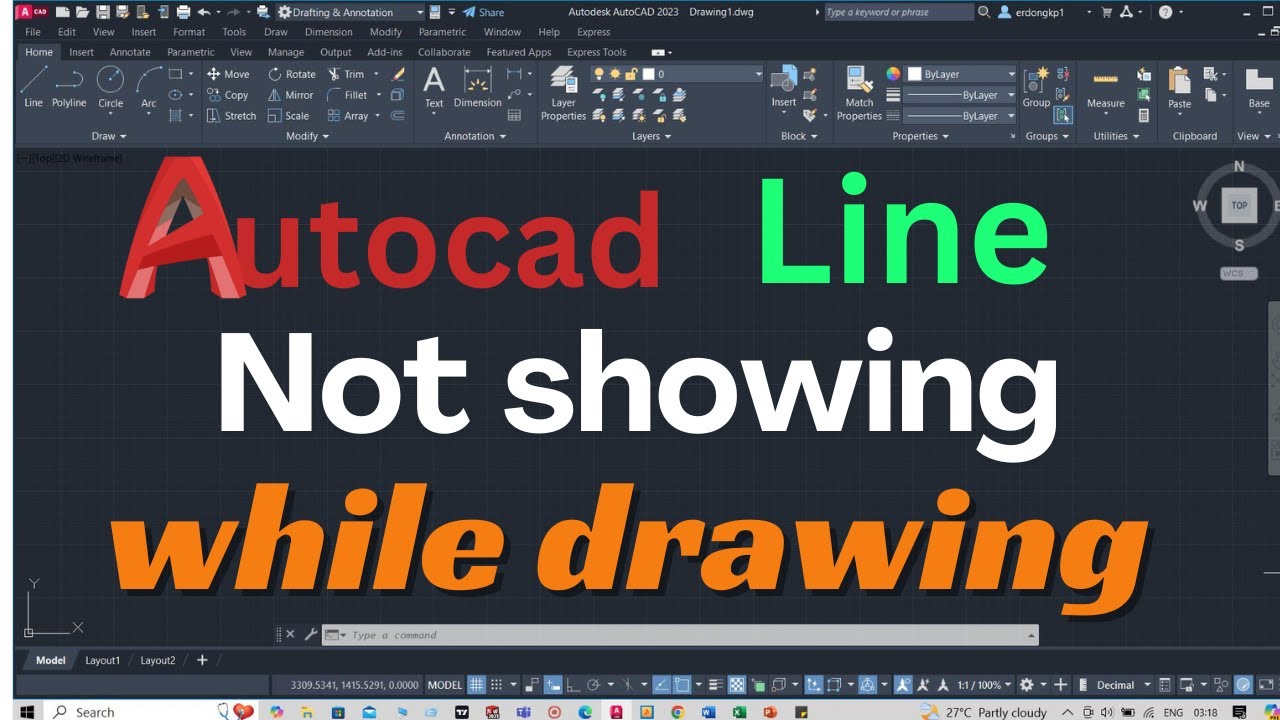

autocad line not showing while drawing in layout

autocad line not showing while drawing in layout
AutoCAD is a computer-aided design (CAD) software developed by Autodesk that is widely used for creating precise 2D and 3D drawings. It is commonly utilized by architects, engineers, and designers for a wide range of applications including drafting, planning, and modeling.
AutoCAD is an industry-standard CAD software used for 2D and 3D design and drafting. This video demonstrates the powerful features of AutoCAD, from creating complex architectural layouts to detailed engineering schematics. Whether you’re a beginner or an experienced designer, learn how to use AutoCAD to bring your ideas to life."
autocad line not showing
autocad line not showing while drawing
autocad line not working
lines in autocad not showing
layer properties autocad not showing
line not drawing in autocad
drawing not showing in layout autocad
drawing not visible in layout autocad
line not showing in autocad
line not showing in layout
hidden line not showing in layout
autocad command line not showing
hidden line not viaible in autocad
autocad dashed line not showing in viewport
autocad hidden line issue

autocad line not showing in layout
autocad line not showing
autocad hidden line not showing

Hashtags: #AutoCAD #CADDesign #3DModeling #Engineering #Architecture #AutoCADTutorial #DesignSoftware #Autodesk #Drafting #ConstructionDesign #CivilEngineering

[DESIGN.COURSE]

If lines are not visible when drawing in AutoCAD, the issue could be related to visibility settings, scale, or hardware issues. Here are steps to troubleshoot and resolve the issue:

1. Zoom Extents

Press Z + Enter, then E + Enter to zoom to extents. This ensures the line is not outside your current view.

2. Check Layer Settings

Ensure the correct layer is active.

Confirm the layer is not turned off, frozen, or locked.

Verify that the layer color is not the same as the background color.

3. Line Type and Scale

Check if the line type is set to a dashed or complex line type. If so:

Use the LTSCALE command and set it to a smaller value like 1.

set appropriately (usually 1).

4. Line Weight

Use LWDISPLAY and set it to ON to ensure line weights are visible.

Go to the Layer Properties Manager and check if the line weight is set to "Default" or too small.

5. Graphics Performance

Type GRAPHICSCONFIG and enable or disable hardware acceleration depending on your system's capability.

Update your graphics card drivers if needed.

6. Drawing Units

Check the drawing units by typing UNITS to ensure you're working in appropriate units (e.g., millimeters or inches).

7. Drawing Limits

Type LIMITS, then ON to ensure your drawing area is not constrained.

8. Visibility or Viewport Issues

If using a viewport in Layout, ensure the viewport scale is appropriate.

Check the CLIP or XCLIP command if external references (Xrefs) are involved.

If none of these solutions work, the issue might be file-specific. You can use RECOVER or AUDIT to check and fix potential file corruption. Let me know if you need further assistance!
