How Torque Converters Work! (Animation)

The torque converter is often seen as the most complicated part in vehicles of today. It is, however, a very important component of automatic transmissions. This animation explains the theory behind this complex component.

Contents
1) Torque converter impeller
2) Blades and fluid of impeller
3) Centrifugal forces caused by rotation of impeller
4) Torque converter turbine
5) Fluid flow between impeller and turbine
6) Fluid coupling
7) Torque converter stator

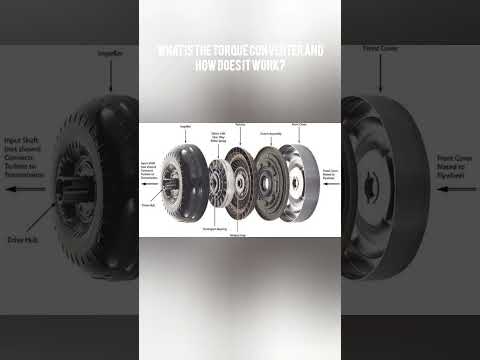

8) Housing, lock-up clutch and shaft
9) Stages of operation: stall, acceleration, coupling

[Pretermitted]

The genius behind this is so undervalued. Imagine having to come up with this on your own where would you start?

[deusexaethera]

The stator assembly never seems to be explained adequately, so I will explain it now:

The stator redirects fluid flow exiting the input turbine, so the fluid impacts the output turbine more forcefully. This allows the fluid to transfer its kinetic energy to the output turbine more effectively. However, the stator also creates a lot of turbulence in the fluid, and therefore wastes some amount of energy in the process.

To minimize this effect, the stator is mounted on a one-way bearing that allows it to spin freely in one direction, so it stops interfering with fluid flow when the torque converter is spinning at high speed. This "unlocking" occurs once the entire torque converter is spinning fast enough that the forward rotation of the torque converter overwhelms the force of the fluid trying to spin the stator backwards.

Since the force trying to spin the stator backwards depends on the total amount of force being transmitted through the torque converter, that means the exact moment when the stator unlocks and starts spinning depends on how hard the vehicle is accelerating.

In layman terms, the stator is always locked when the car first starts accelerating, and it unlocks when you finish accelerating and start cruising at your intended speed. You can re-lock the stator by stomping on the gas pedal, and you can unlock the stator again by easing off the gas pedal or coasting. There's no reason for you to do this on purpose, though, because locking the stator is only useful during hard acceleration, and the extra efficiency from unlocking the stator only matters at high speeds. Just let the stator do its job and drive the car normally.

[Bassotronics]

In short, my car is moving due to the kinetic force of a liquid. It's amazing how much force is applied to a liquid which can move tons of metal up a hill.

[AspectOfTheStorm]

Ah! He said the magic words. "Because the fluid flows back more slowly". I just watched over an hour of videos on torque converters and kept failing to realize the relationship between the stator, when the clutch engages and its purpose, and how the torque is physically multiplied. But now it makes sense. Since the pump is constantly spinning at engine speed and there's pressure being built up at the stator, adding more "leverage", if you will to the pump. And when this leverage is no longer needed at high speed the clutch is engaged essential making it 1 synchronized mechanism.
