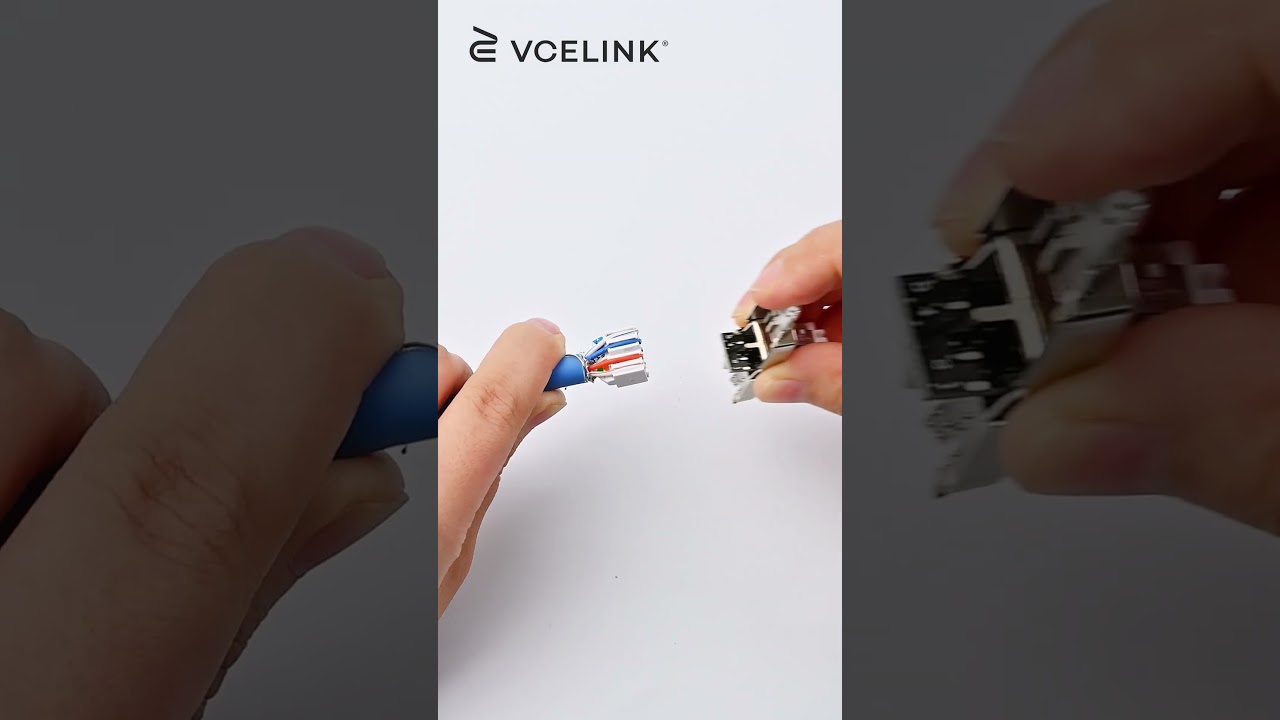

How to terminate a Cat7 field termination plug?#shorts #rj45 #cat7 #rj45connector #tutorial #diy

#fieldtermplug #rj45 #cat7 #howto #diy #homenetwork #gamingsetup #ethernetcable

[OneIdeaTooMany]

Honestly that is how ALL RJ45's should be assembled!

[JasonMasque]

Category 7/Class F cable is not recognized by the TIA. Cat7 didn't catch on very well with most manufacturers; most hardware produced supports 8P8C rather than the GG45 or TERA for 10 Gigabit Ethernet products in order to function on Cat6a.

[jhromeror]

We are 2 CAT generations away from having a thick and unmanageable cable as the first Ethernet cable was!

[tokiomitohsaka]

Didn’t know you can do that without an RJ45 crimp. Neat!

[sealstech]

I like this mildly better than the previous design used by TrueCable for their “tool-less” shielded cat6 keystones. My biggest complaint with them was using a ziptie to keep the assembly secure, this solved that by adopting the threaded cone and butterfly construction of fiber connectors. I dig it for shielded applications even if cat7 is of questionable use for 98% of consumers. 🍻

[aefgshwrthwrhnwrhnbw]

Remember - the only people using cat7 are amateurs and home users. Professionals are wiring commercial buildings with cat6a.

[jenshumke]

CAT.7 has no RJ45 if you put an RJ45 connector on it it's just CAT.6A. GG-45 for CAT.7. Buy a cheaper CAT.6A in the first place or a CAT.8 cable both are RJ45 compatible. I don't get why people still use CAT.7

[dubz]

I love the part where you remove the grounding insulation instead of connecting it properly, making for a worse connection than one that wouldn't have grounding at all.

[claytongetz]

Don't forget to use Quality LEVITON Berk-Tek cables

[JuliusAlbert-ik]

Well that's interesting never seen those before

[MultiChallenge]

They cut off a little from the main bay, three meters were needed.

[vibrion]

Cool connector! It looks pretty expensive

[awwbeans]

I don’t bother with cat7 but I think we can all agree this seems miles better than crimping rj45. Even with pass through it’s a nightmare. Though punching down cat6 is probably easier and the easiest rj45 crimp to do is the one you never have to because you just bought correctly sized patch cables

[ronaldoliver]

Part of me feels like where was this when I had to make lines for our test stations the other part says why didn’t I think of this first 😂😂😂

[shazzi-O]

Sehr gut habe ich auch gekauft, einfach zu montieren

[powerupminion]

Hi electrician and network specialist here. Please don't use that cable in any of the locations I service. With that crappy shield connection, it's gonna be a hell of a time to find and rip out.
-Sincerly, the guy that fixes everybodys stupid problems.

[Uluze]

lol not shielded.... from the company that makes the field term connecters I would have figured they would show the proper way to install it instead of the fly-by-night way

[thebearclaw]

I found a 1000ft of cat7 marked down to $40 at micro center a few years ago. Wired my whole house in it. Honestly it was easier to do than the regular connectors for ethernet connects. I have 2.5 gig running to everything in my house lol. Only my pc uses 2.5 everything else only takes 1gig at most. Over kill sure. But i was worried about plasma table and welders in my garage putting out high frequencies while being used being disruptive to the cables running to my pc from my garage

[Nathan]

Huh I guess I’m old now because I have never seen this method or I’m so used to using the old school way😂

[nikolaj]

Какой крутой и дорогой кабель. В России такие кабеля не видел.
