#mcbox #mcbe #mcb #circuitbreaker
Difference between Class A, B, C, D, K and Z Type Miniature Circuit Breakers (MCB)
MCBs are classified into different types based on its tripping characteristics that are the range of tripping fault current at which the device operates in the event of short circuit or overload.
Type A Miniature Circuit Breakers
Type A MCBs are highly sensitive devices which trip instantaneously when the current reaches 2 to 3 times the rated current.
Mainly used for the protection of highly sensitive devices.
Type B Miniature Circuit Breakers
A type B MCB trips when the current is 3 to 5 times the rated current with an operating time of 0.04 to 13 Seconds. It is used for purely resistive loads that are non-inductive loads or with a very small inductive load which has no considerable amount of inductance.
These types are mainly used for low power domestic applications like lighting circuits, home wirings, etc.
Type C Miniature Circuit Breakers
Type C operates for a current value of 5 to 10 times than the rated current with an operating time of 0.04 to 5 Seconds. These are used with inductive loads like motors, fans, transformers, etc. where have a chance of sudden current rush or surges.
Mainly used in commercial and industrial applications.
Type D Miniature Circuit Breakers
Type D has a trip current of 10 to 20 times than the rated current with an operating time of 0.04 to 3 Seconds. It is used for very high inductive loads.
Mainly used in high power industrial applications for types of equipment like heavy motors, transformers, x-rays, welding, etc.
Type K Miniature Circuit Breakers
Type K trip when the current reaches 8 to 12 times than the rated current with an operating time of less than 0.1 Second. These are used for inductive loads which have a chance of high inrush currents.
Type Z Miniature Circuit Breakers
Type Z MCBs operates for a current value between 2 to 3 times the rated current with an operating time of less than 0.1 Second.
Type A, K and Z MCBs have extremely small operating time compared to type B, C, and D MCBs. Class A, K, and Z are highly sensitive breakers which operate very quickly in a short time used to protect sensitive devices.
Difference between Class A, B, C, D, K and Z Type Miniature Circuit Breakers (MCB)
MCBs are classified into different types based on its tripping characteristics that are the range of tripping fault current at which the device operates in the event of short circuit or overload.
Type A Miniature Circuit Breakers
Type A MCBs are highly sensitive devices which trip instantaneously when the current reaches 2 to 3 times the rated current.
Mainly used for the protection of highly sensitive devices.
Type B Miniature Circuit Breakers
A type B MCB trips when the current is 3 to 5 times the rated current with an operating time of 0.04 to 13 Seconds. It is used for purely resistive loads that are non-inductive loads or with a very small inductive load which has no considerable amount of inductance.
These types are mainly used for low power domestic applications like lighting circuits, home wirings, etc.
Type C Miniature Circuit Breakers
Type C operates for a current value of 5 to 10 times than the rated current with an operating time of 0.04 to 5 Seconds. These are used with inductive loads like motors, fans, transformers, etc. where have a chance of sudden current rush or surges.
Mainly used in commercial and industrial applications.
Type D Miniature Circuit Breakers
Type D has a trip current of 10 to 20 times than the rated current with an operating time of 0.04 to 3 Seconds. It is used for very high inductive loads.
Mainly used in high power industrial applications for types of equipment like heavy motors, transformers, x-rays, welding, etc.
Type K Miniature Circuit Breakers
Type K trip when the current reaches 8 to 12 times than the rated current with an operating time of less than 0.1 Second. These are used for inductive loads which have a chance of high inrush currents.
Type Z Miniature Circuit Breakers
Type Z MCBs operates for a current value between 2 to 3 times the rated current with an operating time of less than 0.1 Second.
Type A, K and Z MCBs have extremely small operating time compared to type B, C, and D MCBs. Class A, K, and Z are highly sensitive breakers which operate very quickly in a short time used to protect sensitive devices.
0:08:30
MCB Types and their Applications || Types of MCB
0:06:54
Difference between MCB, MCCB, ELCB, RCCB, RCBO, RCD And MPCB || why we use this device
0:07:32
B C D K Z Type of MCB And their Uses | Types of miniature circuit breaker @TheElectricalGuy
0:24:33
Types of MCB / Circuit Breaker, BCDKZ
0:06:39
Miniature circuit breaker types||Types of mcb and uses||Miniature circuit breaker
0:06:34
How to Choose Right MCB Breaker || Types of MCB
0:01:17
Miniature Circuit Breaker (MCB) Types and Functionality | c3controls
0:07:32
Types of [ MCB ] Miniature Circuit Breaker and Uses in Tamil | Halfboil Engineers| 1D3K | #mcbe
0:02:28
Types Of MCB circuit breaker / MCB Types Working B C K D Z /MCB Kitne Prakar Ke Hote Hai
0:03:19
Types of MCB || Miniature Circuit Breaker || MCB Types and their Uses
0:07:25
Difference Between MCB, RCCB & RCBO Circuit Breaker @TheElectricalGuy
0:08:22
MCBs, how do they work?
0:00:17
PIN Type MCB Lockout
0:05:29
Types Of MCB| Types Of MCB A B C D K Z| MCB Selection Guide | Hindi
0:15:56
MCB – Circuit Breaker Selection – Types B - C - D and Types 1 - 2 – 3 - 4
0:09:53
All Types of MCB Proper Connection | Input and output MCB connection @TheElectricalGuy
0:00:13
BG RCBO Vs MK MCB Fuse British General compact type A #Rcbo
0:06:22
How to read a Miniature Circuit Breaker (MCB) nameplate?
0:00:25
YCBZF Wifi Smart Circuit Breakers MCB makes all your home appliances smart
0:11:56
mcb malayalam || how to select mcb || mcb types || mcb curve || unnistechvlog || youtube || unnipgs
0:06:40
MCB (Miniature circuit breaker)- how does it work - types of MCB-Uses of MCB
0:10:38
B-Type vs C-Type MCB for your home | Choosing the right MCB | Polycab Electricians School
0:00:39

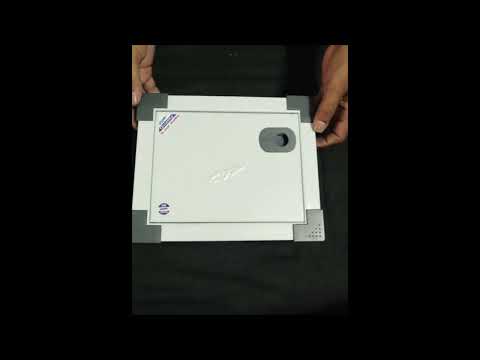

MCB BOX ma kya hota ha? | Types of MCB box | Agarwal Syndicate
