Gear Forces of HELICAL and BEVEL GEARS in Just Over 10 Minutes!

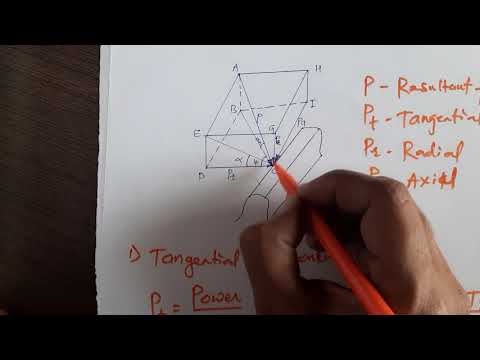

Tangential, Radial, and Axial Components
Equation Derivations
Axial Load - Thrust

0:00 Power, Torque and Forces
1:17 Helical Gears Force Components
2:36 Thrust (axial loads)
3:39 3D Render of Force Components
4:28 Bevel Gears Force Components
7:14 Helical Gear Example

Previous Video: Gear Forces and Power Transmission of Spur Gears in Just Over 12 Minutes

Part 2 for this video:
Worm Gear Forces and Speed Relations in Just Under 15 Minutes
