DIY Class D Audio Amplifier

Thanks to EasyEDA for sponsoring this video.

Aliexpress:

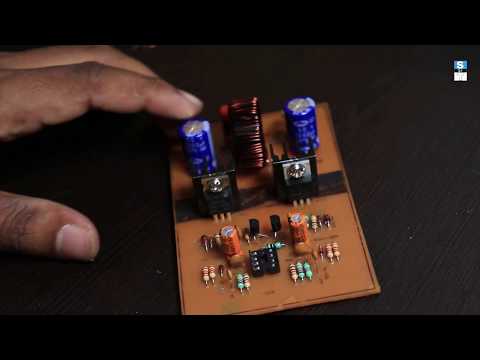

In this project I will show you why a class AB amplifier is pretty inefficient and how a class D amplifier on the other hand improves this efficiency. At the end I will show you how we can apply the theory of operation of a class D amp to a couple of common components in order to create our own DIY class D audio amp.
