DTC Jeep B0101-17 Short Explanation

The video focuses on the basic Jeep specific diagnostic error code.
Contents:
0:21 Basic DTC analysis according to OBD2 protocol standard.
1:48 Insight into programming

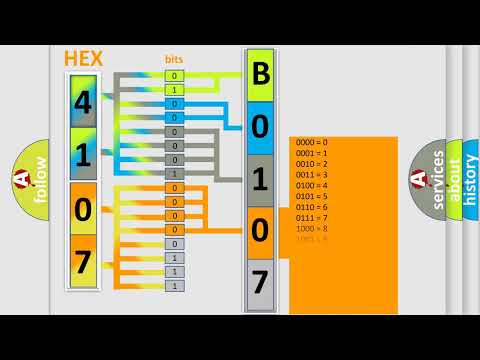

- an explanation of what a bit is and how a byte is formed
- decoding the Error Code to the base programming
2:58 A diagnostically understandable description of the Diagnostic Trouble Code
3:05 Basic error definition
- Possible causes or errors of the car and its parts describing the mentioned error

We will continue to work on improving the content.

#maxidot #dtc #howto #diagnostictroublecode #jeep




Make:
Jeep
Code:
B0101 17
Definition:
High Speed CAN Communication Bus
Description:
Monitor runs whenever following DTCs are not present: None Battery voltage: 10.5 V or more Power switch: On (IG)
Cause:
CAN Communication Bus circuit Faulty module
Failure Type:
Circuit Voltage Above Threshold
This sub type is used for failures where, the control module measures a voltage above a specified range but not necessarily a short to battery.
