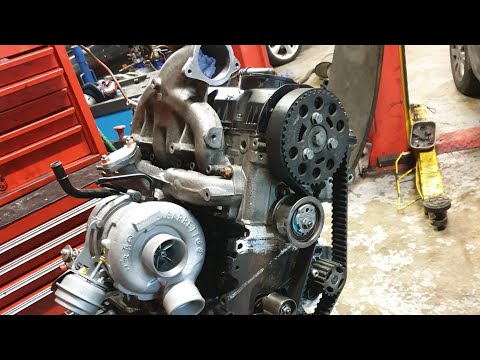

New race 1.9 tdi pd ARL engine project 2024 build Time-lapse

#WRCgarage #craiova #quattrolegend #tdipower #2023

Time-lapse race engine rebuild

Hello everyone, because time is very expensive these days i couldn't upload full video of this build as would be many hours of work and probably the watching will became boring.
I have stripped out this engine 1 year ago and because i don't have much time finally i finish it this month, it was a hard work but i hope will worth, at the moment everything looks fine the engine runs smoth one it starts, the cold start it's a bit heavy but because we have new piston rings and machined pistons i suppose that's ok. The engine needs to be running in on low revs for about 1000 miles, at the moment it has just around 100 mile on and got no time to do it, so in the winter that will be done then hopefully the cold start should improve one the rings are settled.

Here i have writed down a list with almost everything i've spend in the rebuild of this engine :

Veicomer full race cylinder head - 1200 £
Firad injectors UnitedDiesel 120% - 960£
Turbo hybrid GTB2566VK - 1560£
Sachs SRE performance clutch kit - 1400£
Tubular exhaust manifold Darkside - 1200£
ProRaceEngineering conrods - 400£
ARP2000 WhitbreadPerformance studs - 300£
G-plus oil cooler kit - 84 £
Topran oil pump - 70 £
OEM timing kit - 150 £
Oil chain kit inna + seal - 50 £
Victor Reinz head gasket - 25 £
Map sensor 6 bar - 40 £
Conrod bearings + torco lube - 57 £
Bosch injector o-rings - 33 £
MAP flange - 30 £
Thermostat oem - 20 £
KING crankshaft bearins - 30£
OEM small crankshaft toothed wheel - 15£
OEM big camshaft toothed wheel - 28£
Bar-tek diamont coated friction disc - 40£
Bar-tek Arp flywheel bolts - 48£
OEM intake manifold bolts - 16£
OEM crankshaft bolts 12.9 grade - 21£
OEM stud + OEM nut tensioner - 4£
Continental water pump - 36£
Elring small crankshaft seal - 8£
Elring camshaft seal - 5£
OEM exhaust studs + nuts - 16£
OEM camshaft toothed wheel bolts - 5£
OEM timing tensioner - 20£
Goetze piston rings + Glyco camshaft bearings + Elring tandem seal + Elring big crankshaft seal - 245 £
Bosch tandem pump - 20£

Total just in engine - 8136 £

Thank you very much to everyone for support, likes and shares ! 🙏
