5 Minute project: WiFi deauther with ESP8266 OLED module

The module goes by the name: Wemos® D1 Esp-Wroom-02 Motherboard ESP8266 Mini-WiFi NodeMCU Module ESP 8266+18650 Battery+0.96 OLED which is incorrect in many respects.
See the details in my blog here:

[rumbuff]

Hey, got the same module.. everything works but i can not fix the button problem.. up12(D6), down13(D7), select14(D5).. the only function i have is right as select 4 scanning APs.
where is the mistake in my button mapping?
cheers and thx 4 the vid!

[Sciencegum]

Wow! These videos are quite entertaining and you're a very good narrator definitely keep up the great work my friend!

[nightcoreyou]

Can you share me your code?. I really wanna see and refer because my teacher wants its run and display temperature on oled . but i'm just fresher and i have't good enough to know everything about this module

[screwoff]

I know its been a while but do you have a pinout for this board? I've been looking for it but I can't find it anywhere.

[dvdcd]

Great video! didn't know this module was ready made compatible with the deauther

[DesertJeff]

Oh man, I know you're a bad guy with that esp8266 module.

[peterfhere]

For those seeking a copy of a demo program that works, try this:

// Include the correct display library
// For a connection via I2C using Wire include
//#include <Wire.h> // Only needed for Arduino 1.6.5 and earlier
#include "SSD1306.h" // alias for `#include "SSD1306Wire.h"`

// Initialize the OLED display using Wire library
SSD1306 display(0x3c, 5, 4);

#define DEMO_DURATION 3000
typedef void (*Demo)(void);

int demoMode = 0;
int counter = 1;

void setup() {
Serial.begin(115200);
Serial.println();
Serial.println();


// Initialising the UI will init the display too.
display.init();




}


void drawTextFlowDemo() {


display.drawStringMaxWidth(0, 0, 128,
"Peter got it working!" );
}

void drawTextAlignmentDemo() {
// Text alignment demo


// The coordinates define the left starting point of the text

display.drawString(0, 10, "Left aligned (0, 10)");

// The coordinates define the center of the text

display.drawString(64, 22, "Center aligned (64, 22)");

// The coordinates define the right end of the text

display.drawString(128, 33, "Right aligned (128, 33)");
}

void drawProgressBarDemo() {
int progress = (counter / 5) % 100;
// draw the progress bar
display.drawProgressBar(0, 32, 120, 10, progress);

// draw the percentage as String

display.drawString(64, 15, String(progress) + "%");
}

Demo demos[] = {drawTextFlowDemo, drawTextAlignmentDemo, drawProgressBarDemo};
int demoLength = (sizeof(demos) / sizeof(Demo));
long timeSinceLastModeSwitch = 0;

void loop() {
// clear the display
display.clear();
// draw the current demo method
demos[demoMode]();


display.drawString(10, 128, String(millis()));
// write the buffer to the display
display.display();

if (millis() - timeSinceLastModeSwitch > DEMO_DURATION) {
demoMode = (demoMode + 1) % demoLength;
timeSinceLastModeSwitch = millis();
}
counter++;
delay(10);
}

[nejcskornsek]

I have question about deauther. If you can help me write me your discord username so we can chat

[wolflariosa]

Hi Sir I have this kind of board. Where can I find the ino files?

[_Optimus-Prime_]

Hi guys, which bin file do you use for flashing? There is a new version on github.

[Andreademagistris]

I don't undestand where are SDA and SCL pins to connect another I2C sensor.
I tried to find pinout of this board but with no results...
Could you indicate them?
Thanks!

[francopillon]

Hi, I tried to use this module but i haven't a good result.One question, have you flashed the esp8266 card with the program "Nodemcu flasher" and the .bin that you have download from Spacehun github?Thanks.N.B.: if i want to return at the original firmware of this module you know where i can download it? Thanks

[iikkakonola]

Do you happen to know why i get only every second line drawn on Y -axis? I have been going through SSD1306 libraries and trying to debug this issue for a while :|

[wolfsstolz]

Von mir hätte es glatt 5 Sterne gegeben, wenn das Video nicht so blöde geendet hätte. nun weiß ich noch immer nicht was passiert und bin genau so schlau wie vorher

[Adam-tkfm]

Either your using some rlly cool voice masking or your just villainous af

[SWOSSHHRECORDS]

How can i enter to flash mod? It is possible to steal password?

[bakerswrld]

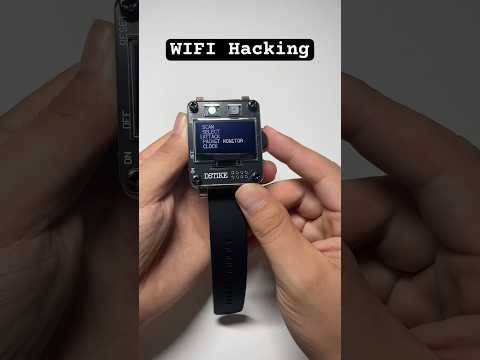

My dstike evo mini won’t deauth on version 2.6.1 any reason why?

[reaperforever]

any updates, i have the same board but the new sketch is different

[Desoxy]

The linked board has been taken down, any other good source?

[neilslater]

I only have COM1 and can't figure out how to connect the module to arduino
