8-Bit Breadboard CPU (PS/2 Controller)

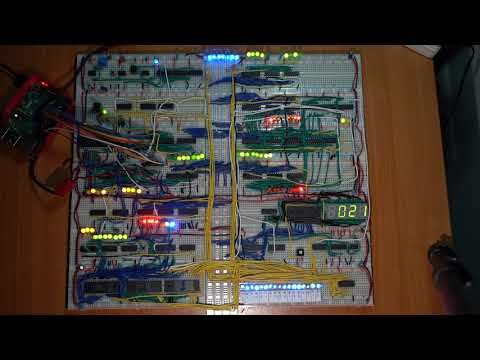

This video is about the PS/2 controller of my breadboard CPU which I use to connect a standard keyboard as input device.

-----------------
0:00 Intro
0:25 PS/2 Protocol Basics
2:36 Receiving a Byte from the Device
5:10 Hardware for the Receive Logic
9:45 Receive Logic Schematic Walk-Through
12:28 Simple Receive Code
13:25 Clock Inhibit
14:30 Interrupt Connection
15:53 Hardware for Congestion Prevention
17:48 Congestion Prevention Schematic Walk-Through
20:10 Sending a Byte to the Device
24:34 Hardware for Send Logic
26:50 Send Logic Schematic Walk-Through
29:28 PS/2 Controller Breadboard Overview
30:15 Receive Code Walk-Through
30:51 Send Code Walk-Through
32:44 Demo and Outro
-----------------
