Twotrees laser TTS-55 and adding limit switches

I purchased a Twotrees TTS-55 laser to add engravings to my projects. I do need to say that I purchased this laser with my own money, it was not given to me by Twotrees 3D. I also added limits switches to the laser. After assembling the laser and adding limit switches I feel that this laser is a good small format engraver for hobby projects. I look forward to many projects with this laser.

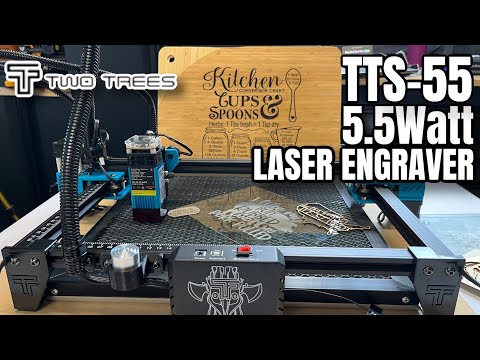

Twotrees laser.

Limit switches.

Thingiverse 3D files for limit switch plates.

Build Dad Build video link.

ECTreasureHunters limit switch video link

[designstudio]

Thanks for the great video! And the links!

[grimlightwildoutdoors]

Cracking laser and mine on its way as a new business venture, worth you investing in the air assist will give you even cleaner work and cuts. Grreat video 👊👍👌

[Pineapplex]

Quick tip: if you flip your motherboard upside down on the front you will have the clearance to center longer pieces under the frame.

[stevehanely]

The expansion is available as part of the unit or separately currently

[АртемБелкин-ур]

Спасибо тебе, друг! Благодаря тебе сделал концевики на свой гравер!

[ChrizRC]

do you happen to know if they work on a TTS 10pro?

[RatherFlyRC]

Great video. Do you know how to install switches on the other 2 ends? as a protection to not grind the motors in case it tries to run off the limits? than you.

[davekimbler]

I just received one ( my first ) and it’s a huge learning curve for me, I’m not sure if I like Lightburn or GBRN better ? But mine has the air assist that does make a difference in cutting . I’m not sure if making it larger is better but I deal with small engravings on leather and ceramics and aluminum.

[symmetrywoodworks]

Nice video, just need to confirm the orientation of the wires 😁 so based on the video, its red(voltage) on top, black (ground) in the middle then green (signal) at the bottom? Thanks!

[WilliamAgans]

What are the connector types on the board? I have PH2.0, but those aren't correct.

[EmpoweredPercussion]

Question about limit switches, I have several on my laser but didn’t know how the actually work. Is the laser head supposed to physically hit it? Or is there a sensor on the limit switch that senses when the laserhead comes near it? I ask because my laser head Rams in the mind sometimes and wants to keep on going and I have to shut the machine off quickly.

[fabien.l]

Hello everyone.
I added limit switches on my TTS-55 pro, and I noticed after that I have a lot of USB disconnexion during jobs, after 2/3 minutes.
I tried a 22 minutes job after disconnecting the switches, and it runned smoothly to the end.
Anyone knows what the problem can be ?
BTW, the problem occurs on Lightburn. I didn't test with another soft.

[smedleywooddesign]

I have had requests for the feet I used to secure the laser to plywood, so I added the stl files to Thingiverse, same link as the limit switches.

[guythejedi]

where is the link for the feet you made?

[MisterMakerNL]

Diode lasers are the worst, they don't even cut white paper.
