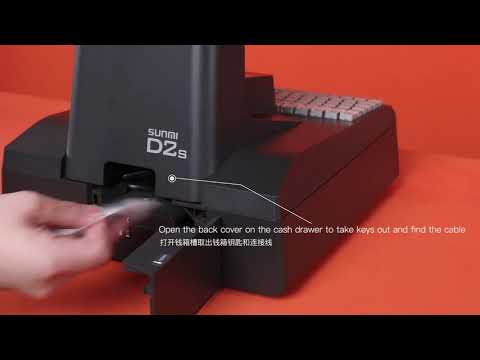

SUNMI D2s KDS Kitchen Display System - Open the Box

SUNMI D2s KDS Kitchen Display System

Streamline your kitchen operations for improved customer satisfaction.

Boosted BOH efficiency.

Touch, and done.

Sealing protection.

With a sealed enclosure, D2s KDS is IP55 waterproof and easily cleanable.

It is perfectly designed for hot, humid, and greasy kitchen environments.

Painless installation, easy operations.

VESA mount compatible. Wall-mounted, pole-mounted, arm mounted, your kitchen, your choice.

You can set D2s KDS to auto start once connected to a power supply.

Power over Ethernet*. Reduce cabling needs by connecting to network and power, the device with one cable.

Vertical or horizontal. Orient the KDS screen to suit your kitchen.

Go paperless and boost your restaurant BOH efficiency with SUNMI D2s KDS. Orders taken in the front of the house (FOH) will be directly sent to the back of the house (BOH) KDS screens. No more wrong or
lost orders, and higher efficiency.

Simply check tickets on the 15.6" FHD capacitive multi-touch screen and tap to change ticket status, with a wet hand or a gloved hand.

SUNMI D2s KDS Tech Specs

Memory
2GB RAM+8GB ROM

CPU
Cortex-A55, 1.8GHz

OS
SUNMI OS
(*based on Android 11)

Display
15.6" FHD, 1920*1080
Capacitive multi-touch screen

Camera
Built-in 2M FF camera (optional)

Model Approved
L3561

Speaker
1* 3W

Ethernet
LAN 100M
POE (optional)

External Memory Card
1* MicroSD（TF）
Up to 64GB

Button
1* Power (lock screen) button

Wi-Fi
2.4GHz/5GHz
IEEE 802.11 a/b/g/n/ac

Bluetooth
Bluetooth2.1/3.0/4.2
BLE

Power Adapter
Input: AC100～240V/1.5A
Output: DC 24V/1.5A
or Input: AC100～240V/0.7A
Output: DC 24V/1A

Ports
4* USB Type A port
1* RJ11 port
1* Switch for auto start
1* RJ45 LAN
1* 3.5mm audio jack
1* Power port
1* Micro-USB debug port

Dimensions (L*W*H)
381.51*251.21*40.58mm

Weight
1.69kg

Environment
Working temp.: 0℃~40℃
Storage temp.: -20℃~60℃

*POE Switch is required Concealed Wires Rounded Corners

1.The usable memory may be less than the installed memory.
2.All specifications are subject to change without (prior) notice.
