Emi corder SM 205TW Clockwork Tape Recorder! (SHORT-SERIES)

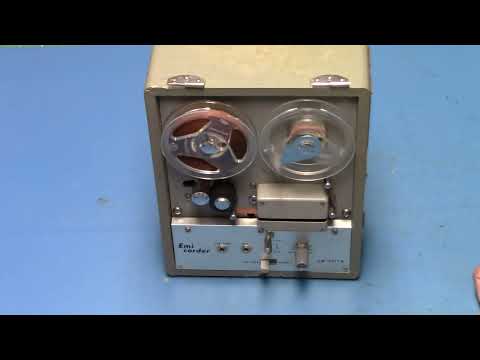

In this SHORT-SERIES Presentation (last installment was 2018 I think!!!!) I show you a rare Japanese reel-to-reel tape recorder from 1959 (yes, the FIFTIES) that uses a clockwork mechanism as opposed to the typical DC motor.

This device is 5-transistor, DC bias, DC erase, with manual level control (no VU meter). The amplifier runs off 9VDC. Only one slightly leaky capacitor had to be replaced, even though it was good enough for the amp to still work nicely off all original parts.

Sadly, the original crank is gone, so I am using an M8 x 1.25 bolt with a ratchet to wind the recorder. For maximum wind you wind it with about 50 rotations (the max I have got it was 55, but once it gets hard to turn, don't push it!). It will run for a few minutes before petering out. One nice thing is that it can be wound "live", that is, wound while the unit is running. That way, if someone was recording a speech or something that went for longer than about six minutes or so, another person could be winding the machine to keep it running for longer.

Tape speed is 3 3/4 IPS. I did not mess much with the little speed control it has, as I have once, and when going to the max, it starts making a "clink-clink-clink..." sound and I was getting afraid I might mess up the mechanism, so I want to leave that alone.

According to an online source, the recorder's spring motor was manufactured by Garrard (known for record players) in England. So this Japanese machine has a touch of Britain in it.

P.S. If anyone knows more history of this model, please let me know. Another source claims it is "military", but I highly doubt that, being that this is NO where near anything MIL-SPEC.

Another thing of note is that the circuit board in this, although looking like a regular PCB on the component side, is actually not a printed circuit board. On the other side, it is point-to-point wiring with bare wire for some connections and component leads going to anchor points. The transistors of course are germanium, and thankfully, none of them were noisy.

This unit has a fast flutter in the audio thanks to the gear-driven design, but otherwise, the sound quality is rather decent. Sure, a little muffled, but still it has a pleasing tone with low distortion. The bass sounds pretty good, and there is little to no "DC bias 'S'". Treble response is there to some degree, especially noticeable playing back recordings of music from this on a different machine (sorry, not part of the video).

Fun recorder, and I LOVE the grey.

And the music, OBVIOUSLY, is NOT by me. It is by Twilight Ritual, amongst my most favorite bands of all time, hands down.
