SI4735 Arduino Library and a simple FM and AM radio implementation

Показать описание

More recent videos about this project:

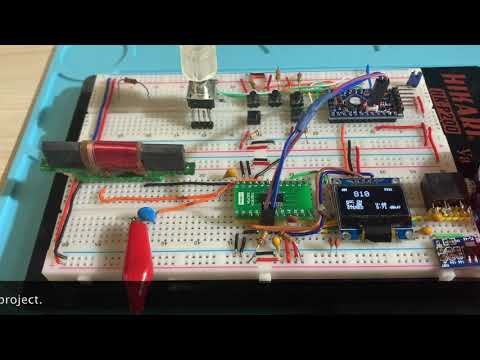

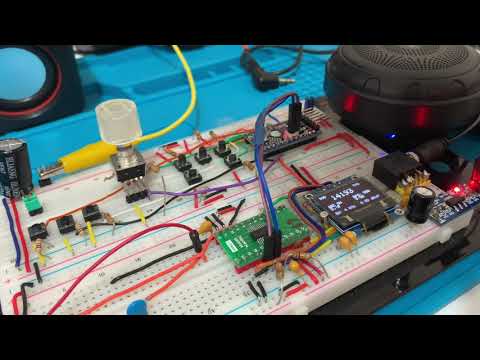

This video shows a simple FM and AM radio based on SI4735 device. This radio was implemented using an Arduino Library available on Arduino IDE and built by PU2CLR, Ricardo. The SI4735 is a BROADCAST AM/FM/SW/LW RADIO RECEIVER from Silicon Labs. It also supports FM RDS and, via applaying patches, also Single Side Band (SSB). These two resources are also being implemented by the author. Currently, Nov 2019, this library implements more than 50 functions available on SI4735 device that allow you to build a real radio receiver.

#si4730 #si4732 #si4735 #si4734 #arduino #ssb

Рекомендации по теме

Комментарии

hi, i am using the rrd-102v2.0 radio module, now i am doing a project, for example, how can i control a radio station empty interference sound. I need to check, if there is a parasite, I want to have it checked with commands such as do the following, otherwise do not.

//example

if(noise==noise)
{
//led on
}
else
{
//led off
}

(Arduino Projects)

ramazanayten

esse projeto esta disponivel para baixa ?

efraimbarros

Parabéns pelo projeto. Comprei todos os materiais, porém não estou conseguindo achar o SI4735, poderia me informar aonde consigo aqui no Brasil? Grato!!!

tatianapaulus

Good day sir. I am a noob to programming using Arduino. I have been having trouble getting the 5110 LCD to display the Si4735 information. I just would like toa sk of you could provide a 5110 LCD Library if any that will work. Thank you in advance.

christophermontilla

I don't have a si4735 in the market to buy.

udaradias

Can you make link for arduino coding download

Arunkumar-smqh
