OVERVIEW AND SETUP

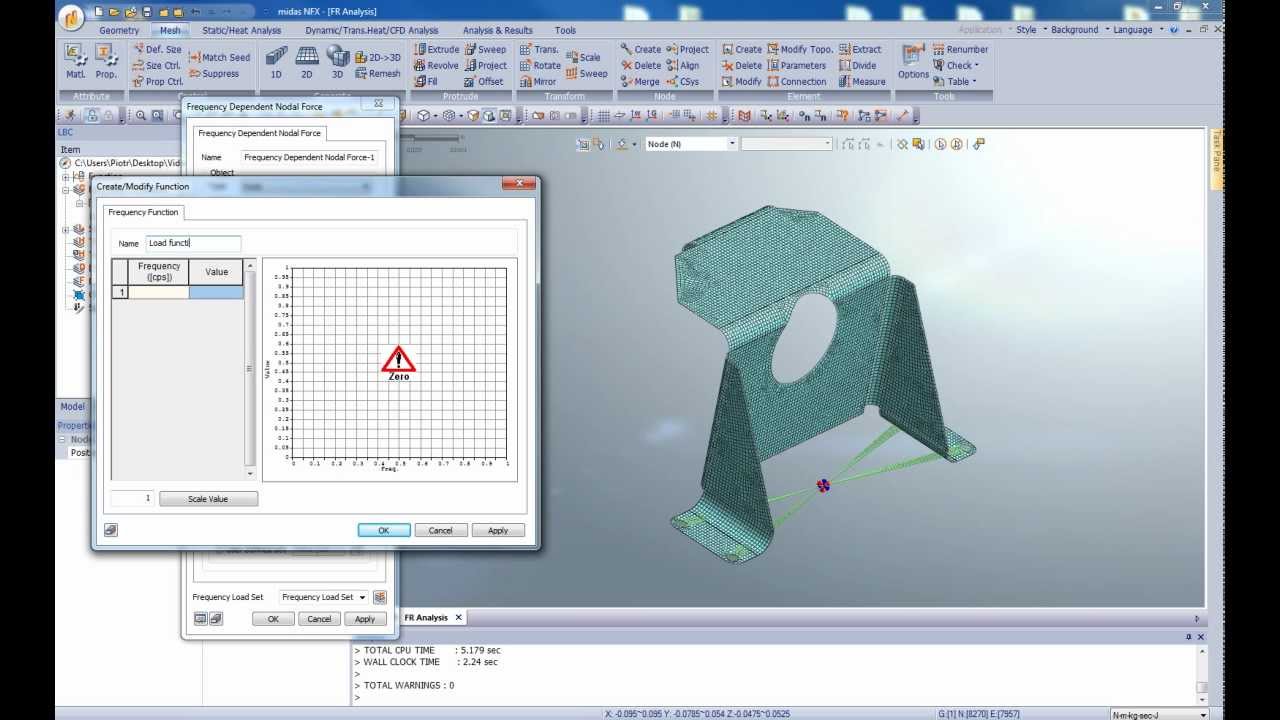

The main goal of this set of demonstrations is to show why it is important to use more advanced types of analysis to fully represent the working environment of a particular design. In this case an analysis of a bracket model will be extended to include dynamics analysis.
The order of the demonstrations is shown below:
Model setup and statics analysis
Normal modes analysis
Frequency response analysis
Direct Transient response analysis
Each demonstration always picks up from the previous one.
The natural frequencies provide important information about dynamic behavior of the structure and are a necessary predecessor to any evaluation of dynamic behavior.
The model picks up from a previous static analysis.
The static analysis and normal modes results were as follows:
δCM = 2.95E-04 m σmax = 85.5E+06 Pa σlimit = 723E+06 Pa
Normal modes analysis:
f1 = 28.62 Hz f2 = 37.69 Hz f3 = 41.45 Hz
The main goal of this set of demonstrations is to show why it is important to use more advanced types of analysis to fully represent the working environment of a particular design. In this case an analysis of a bracket model will be extended to include dynamics analysis.
The order of the demonstrations is shown below:
Model setup and statics analysis
Normal modes analysis
Frequency response analysis
Direct Transient response analysis
Each demonstration always picks up from the previous one.
The natural frequencies provide important information about dynamic behavior of the structure and are a necessary predecessor to any evaluation of dynamic behavior.
The model picks up from a previous static analysis.
The static analysis and normal modes results were as follows:
δCM = 2.95E-04 m σmax = 85.5E+06 Pa σlimit = 723E+06 Pa
Normal modes analysis:
f1 = 28.62 Hz f2 = 37.69 Hz f3 = 41.45 Hz
