Spirograph Machine - Lego Technic

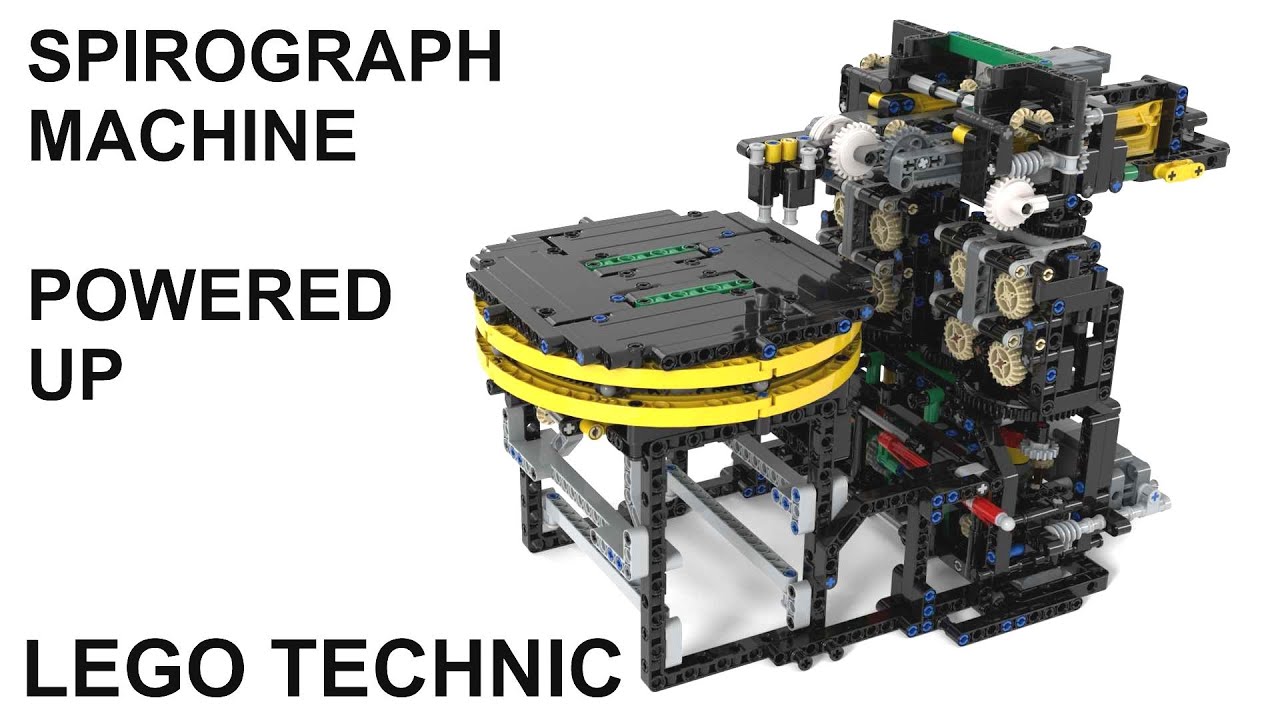

Here I present a Lego Technic Spirograph machine programmed using Powered Up. The powered up controller is used to maintain the desired gearing ratio between the turn table and the inner gear to draw a spirograph that replicates the real original spirograph drawing toy.
