Tupavco TP512 Yagi Wi-Fi Antenna 2.4GHz 15dBi - How To Video

Wireless Yagi is ideally suited for directional and multipoint 2.4 MHz band applications.

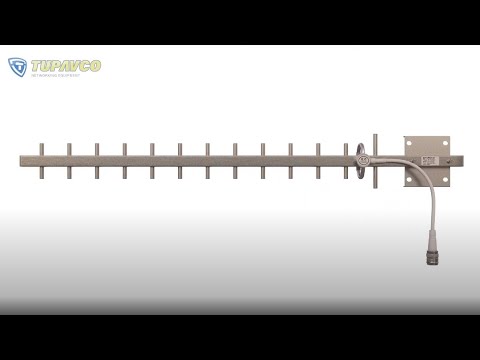

WiFi Yagi antenna is the most popular type of directional antenna in use today. The 15dBi 2.4Ghz Outdoor Yagi Antenna offers 25 deg Vertical and 30 deg Horizontal Beamwidth. It is only 25" long. This WiFi Antenna comes with an N-Female pigtail connector. N-Female is an industry standard connector. It has threads on the outside and a center socket.

The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the Yagi and a device to prevent a lightning strike to the antenna from damaging your device and equipment.

Wireless Yagi Antenna TP512 in most cases can not be attached directly to the device (wifi router, signal booster, etc.) without some type of cable converter/adapter This Antenna has N-Female cable/connector so it will need the cable/converter from N-Female type to [your device connector type], usually to some pigtail coax RP-SMA cable connector. Also, you can put amp of some kind or signal booster between device and antenna.
