DCEC Cummins 6LTAA 8 9 G3 B Generator Drive Engine Introduction 2022 Scopes of supply and Optiona

preview_player
Показать описание
There are 5 key moments in this video:
0:00 DCEC-Dongfeng Cummins Company Introduction
1:15 DCEC 6LTAA8.9-G3 Engine Specifications
2:25 DCEC 6LTAA8.9-G3 Engine Standard Configuration
3:12 DCEC 6LTAA8.9-G3 Customizable Configuration
4:24 SinoGen Introduction

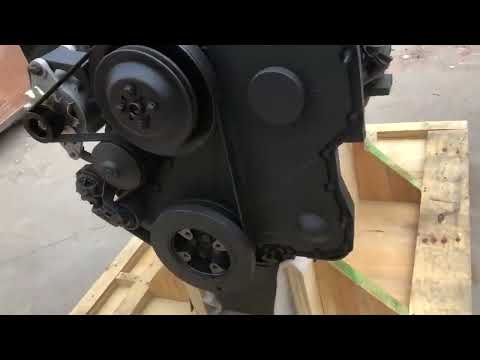

DCEC Cummins 6LTAA8.9-G3 generator drive engine is a 6-cylinders in line,8.9 liter four-strokes engine with 114mm bore and 145mm stroke. Equipped with BYC P7100 pump and electronic governor, comes with turbocharger and Air-Air intercooler.
The prime power for 50HZ generator set (1500RPM) of DCEC Cummins 6LTAA8.9-G3 generator drive engine is 230 kW.
The prime power for 60HZ generator set (1800RPM) of DCEC Cummins 6LTAA8.9-G3 generator drive engine is 255 kW.
Advantages of 6LTAA8.9-G3 Generator Drive Engine.
1. All models have strong versatility, high degree of serialization, and easy maintenance.
2. Amplify the stroke combustion, the combustion gas expands more fully, increase the effective power output, and ensure low fuel consumption under strong power.
3. Forced cooling hinged piston is adopted, which can withstand extremely high mechanical load and thermal load, and has good strength.
4. The use of central fuel injector, the combustion chamber is symmetrical, the mixing in the cylinder is more uniform, the combustion is more thorough, and the emission is lower.
5. Powerful driving air-to-air cooling and turbocharging technology, better engine power.
