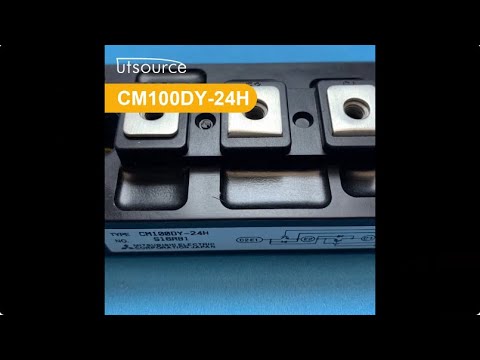

CM100DY-24H Dual Power Electronic Module, Utsource
Показать описание
Product link:
Introduction:
The CM100DY-24H is a 1200V, 100 Ampere Dual Power electronic module primarily designed for switching applications. Each of the modules consists of two insulated-gate bipolar transistors (IGBT) designed in a half-bridge configuration whereby each transistor is connected to a reverse super-fast recovery flyback diode.
All components inside this electronic module are isolated from the heat sinking baseplate, by a basic system assembly and thermal management.
Applications:
The CM100DY-24H can be used in Ac and DC motor drivers.
To control an unregulated power supply (UPS) system.
The CM100DY-24H is used in switched-mode power supplies (SMPS) and Pulse-Width-Mode(PWM)
It is used in DC servo motor control and induction heating.
It is used in inverter such as LOW POWER CVCF INVERTER (UPS)
