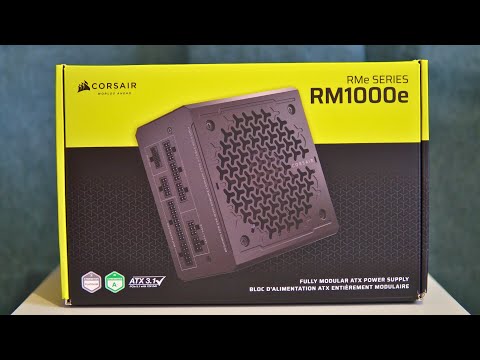

Corsair RM1000e PSU unboxing and setup guide

Here I'm unboxing and setting up the Corsair RM1000e modular power supply unit, while also showing you what to do, where to install the cables, what you need to connect and how and why and more.

This is a surprisingly compact and flexible modular power supply unit where you only need to connect the cables you're actually going to be using, so that's handy!

Please note links listed here include affiliate links which may earn me a commission. Find out more below.*

Features of the Corsair RM1000e:
Fully modular cabling
Low noise operation including Zero RPM mode
105° rated industrial-grade capacitors
80 PLUS GOLD-CERTIFIED
Seven year warranty

Specs of this RM1000e PSU
PATA Connector 4
EPS Connector 2
SATA Connector 7
Modern Standby Yes
Dimensions 160x150x86
Modular Fully
Cable Type Type 4
PCI E Connector 4
Zero RPM Mode Yes
Continuous Power W 1000 Watts
ATX Connector 1
ATX12V Version 2.53
MTBF Hours 100,000 hours
Eighty PLUS Efficiency Gold
Weight 2.914

Model RPS0158
Part No. CP-9020250/75-005037
AC Input Rating
AC Input 100V a.c.-240V a.c 200-240V
Input Current 12A-6A 10A
Frequency 47~63Hz
Max Load Max Output
+3.3V 20A 150W
+5V 20A
+12V 83.3A 1000W
-12V 0.3A 3.6W
+5Vsb 3A 15W
Total Power 1000W

Specs of this build:
Case - NZXT H7 Flow RGB
CPU - Intel Core i5-13600K
RAM - Crucial Pro 32GB Kit (2x16GB) DDR5-5600
Fans - NZXT Core RGB
AIO cooler - NZXT Kraken Elite 280mm

Related videos:

0:00 Hello
0:30 Unboxing
1:45 Motherboard power connections
3:07 8-pin CPU power
4:06 HDDs and SSDs
5:28 RGB and fan controllers
5:53 PATA connector
6:35 GPU PCIe connectors
9:40 12vhpwr PCIe connectors
11:06 Connect everything you need
11:22 How to install PSU
13:04 Power on
