Portable Traffic Signals For Large Intersection Control

IDEAL FOR UP TO 3 LANES OF TRAFFIC

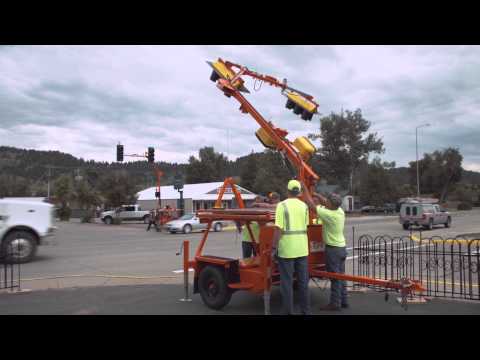

The Pop-Up HD-XL 25’ is the first towable portable traffic signal able to control up to 3 lanes of traffic. The HD-XL 25’ is the ultimate in versatility with the arm length being adjustable from 9’-25’ and the ability to handle countless signal configurations including 3 overhead signals with 4 or 5 section heads on the end position.

The solar panels raise to over 10’ clearance which allows for bicycle and pedestrian clearance as well as reduces potential vandalism. And because the footprint is only 6’ wide (the narrowest in the industry), it can fit almost anywhere.

The HD-XL 25’ features the Intelight 2070 ATC Controller running MAXTIME software. The custom radio system allows wireless communication between OMJC Pop-Up units along with complex phasing ability. The HD-XL 25’ comes standard with two, 385-watt solar panels (adjustable on 2 axes) and 1,100 Ah of AGM batteries. The HD-XL 25' is designed to allow for customization and an array of additional equipment options.
