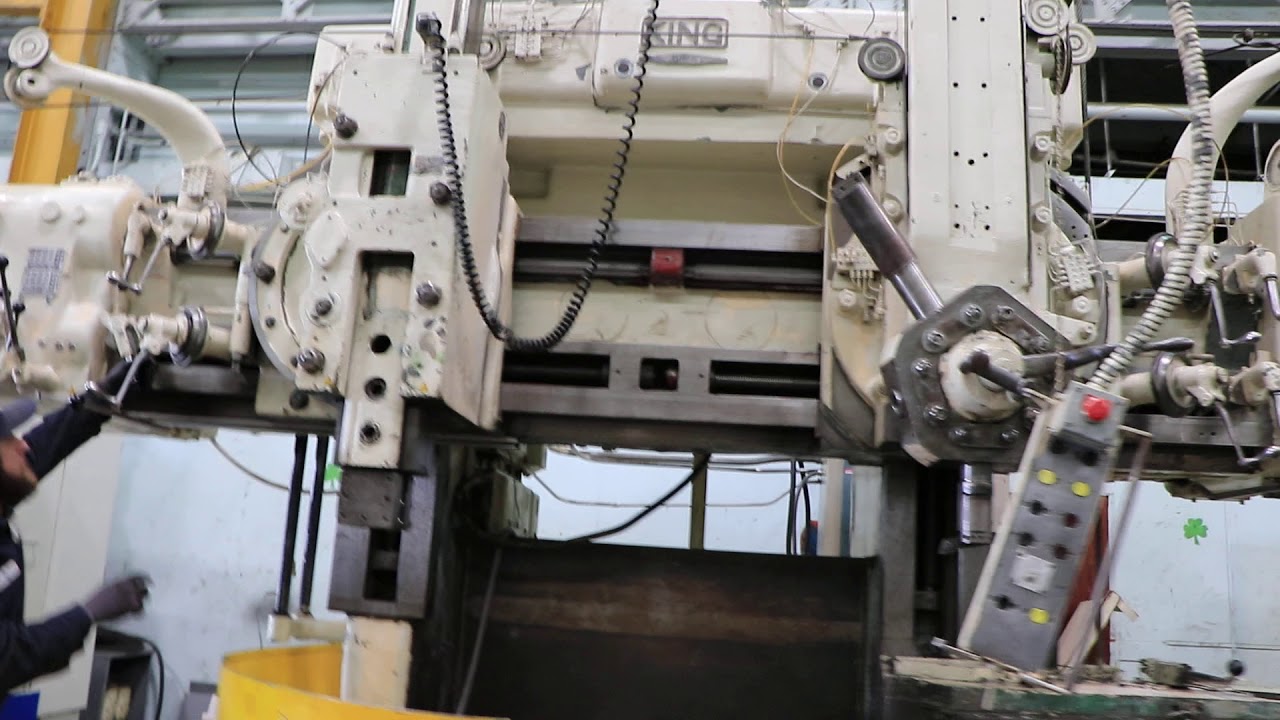

52' KING VERTICAL BORING MILL

52" KING VERTICAL BORING MILL
MODEL: 52", S/N: 2882, NEW: 1952

SPECIFICATIONS:
TABLE DIAMETER ............................. 52"
MAXIMUM SWING .............................. 59-3/8"
MAXIMUM SWING WITH SIDE HEAD ............... 56"
MAXIMUM HEIGHT UNDER CROSS RAIL ............ 44"
VERTICAL TRAVEL OF RAM ..................... 40"
VERTICAL TRAVEL OF TURRET .................. 35"
HORIZONTAL TRAVEL OF SIDE HEAD ............. 25"
TABLE SPEED RANGE .......................... 3.04 TO 150 RPM
FEED RANGE ................................. .003 - .5 IPR
APPROXIMATE WEIGHT ......................... 52,000 LBS

EQUIPPED WITH:
- FOUR JAW CHUCK
- SWIVELING RAM HEAD
- SWIVELING TURRET HEAD
- SIDE HEAD
- STANDARD & FINE FEEDS
- MOTORIZED RAIL ELEVATION
- 30 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
