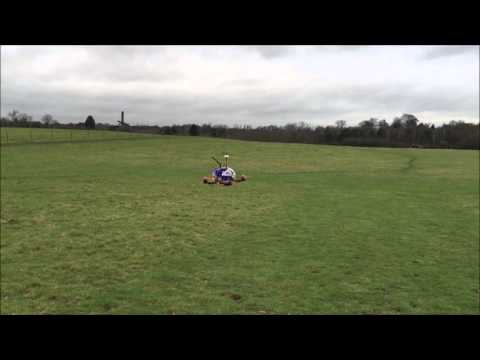

dRonin - autotune on emax nighthawk pro 280

Before anyone gets too excited...dRonin is still very much a work in progress and pre-release. Unless you really know what you're doing and don't mind the chance of a flying blender of doom in your face I can't suggest tracking it down to try yet.

But it's coming and it's sweet :D

Flight controller: Naze (emax "skyline32" NHP all in one board)
Firmware tag: pr/119
Firmware commit: bceeba2
Firmware date: 20151204 05:45 UTC

Vehicle description:
Type: QuadX
Weight (AUW): 580 g
Size: 280
Battery: 3S
Motors: emax 2204 2400kv
ESCs: emax 12a blheli series re-flashed to 14.2 w/damped light and oneshot
Propellers: dal 6x4.5

Observations:
Emax all in one FC/PDB/ESC board with reflashed ESC's
little windier than last nights test tune

Measured properties:
Gain Bias Noise
Roll: 10.3127 0.00234064 69.8466
Pitch: 9.92701 0.0563624 106.325
Tau: 21.3 ms

Tuning aggressiveness:
Damping: 1.1
Noise sensitivity: 1 %
Natural frequency: 9.5

Computed values:
RateKp RateKi RateKd
Roll: 0.00173577 0.00830327 2.72991e-05
Pitch: 0.00255273 0.0122113 4.01477e-05
Outer Kp: 8.79821 - -
Derivative cutoff: 32

[nothingbutadreambutm]

I love you I was having nothing but issues with the Stock settings and this helped my quad fly likea dream

[seekerofyaw]

Awesome...Thanks for sharing...Using recent stable release of dRonin on a Eachine Racer 250(CC3D) modded for 6" props...never could resolve intermittent oscillations using Libre BUT 60 second 'autotune' and BAM, very solid and locked-in!!!love the slide bars for manipulating personal flight preference as well...very impressed...recommend to newbs and veterans alike(if they can peel away from Clean/Beta HA)...any luck getting Horizon Mode to perform a little better???

[peterschultze]

Sweet. getting familiar with changes now that I'm tuned. For a beginner what flight modes do you recommend? Is yaw axis lock sort of a headless mode? Until I really can get more comfortable in air trying to graduate flight modes from simple (easy) to more expert. Recommendations? Autotuned twice but have high Tau levels 70 then 65. Recommendations for bringing those numbers down? My 450 seems to be flying well so maybe not necessary. Thanks for your video!

[mattmonkay]

How did you "start" the auto tune? Every video I've looked up glosses over that part. I'm assuming it isn't recognizing the narrator's voice saying "now I'm gonna enable autotune." Did you have to program an auxiliary switch to channel 5 or 6+?

[RCFlyer]

Will this work on the CC3D on the Eachine Falcon 250?

[Grearson]

hm how do i get it on my FC? got a cc3d, in dronin gcs i see it recognized as copter controll, fine so war, but when i hit rescue on the Fw page it cant find the bootloader

[georgeaura]

what's the procedure on working with auto tune I have beta flight

[animatedlim]

Will this work with F3 fc, like the tornado?
