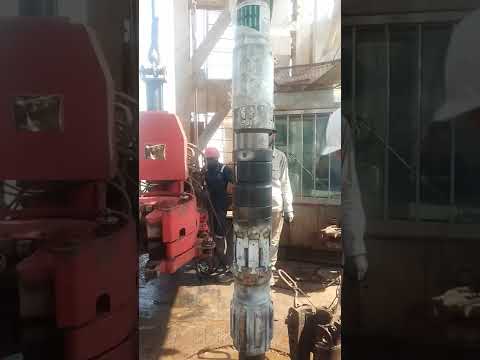

𝐀𝐗𝐈𝐀𝐋 𝐏𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐎𝐍 𝐏𝐀𝐂𝐊𝐄𝐑 𝐖𝐈𝐓𝐇 𝐇𝐘𝐃𝐑𝐀𝐔𝐋𝐈𝐂 𝐀𝐍𝐂𝐇𝐎𝐑 𝐨𝐫 𝐌𝐄𝐂𝐇𝐏𝐑𝐎-𝐇

This Packer designed for long-term tight isolation of the intervals of production casing, injection or production well. It is designed for hermetic isolation of production casing bore intervals and protecting it from the dynamic impact of the working medium during various technological operations. The packer is equipped with Hydraulic Hold Down Buttons, which assists in restricting the upward movement after installation.

𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬 & 𝐁𝐞𝐧𝐞𝐟𝐢𝐭𝐬
1. Packer can be installed without resting on Bottom hole.
2. Packer can be installed by reciprocating movement of string.
3. Packer can be easily unset by tensioning the string.
4. The Packer equipped with slips on one side and Hydraulic Buttons on another to restrict its movement.
5. Three-piece element system for high pressure sealing and pressure reversal loads.
6. Packing elements are surrounded by Expandable supports which decreases extrusion gap.
7. Reliable Packing Element Support.
8. Backup springs behind Lower slips to keep them intact with mandrel and thus stopping from biting the casing during running in.
