Zayer 20KF3000 CNC Bedmilling MACH4METAL 2-3 7576

Make: ZAYER
Type: 20 KF 3000
Control: HeidenHain TNC 426

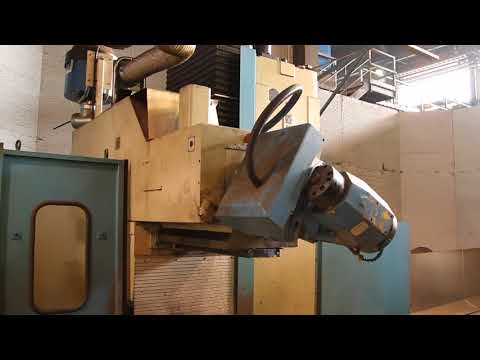

Automatic head 2 x 180 Gr
Central lubrication
Heidenhain TNC 426
Heidenhain HR-410 Handwheel
Specifications
Metric US Standard
X-Axis
2705 mm
Y-Axis
1209 mm
Z-Axis
1004 mm
Table Length
3000 mm
Table Width
1000 mm
Table load
10000
Power on spindle
22 kW
Spindle speeds
3000 Rpm
Spindle Taper
50 ISO/Bt/Mk
Feed rate X-Axis
15000 mm/min.
Feed rate Y-Axis
15000 mm/min.
Feed rate Z-Axis
15000 mm/min.
Millinghead auto-index
2 x 180 with 144 positions °

Dimensions (Estimate)
Length
7200 mm
Width
3300 mm
Height
3300 mm
Weight
18500 kg
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
