Daewoo Puma 230MB CNC Turning Center w/Live Milling For Sale

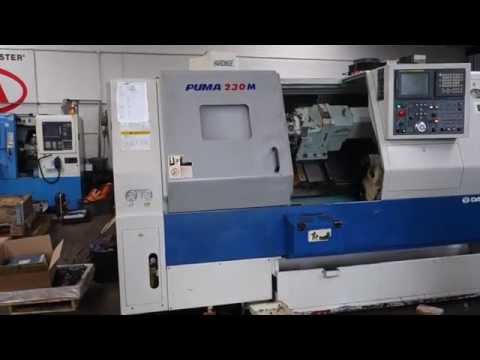

DAEWOO PUMA 230MB CNC TURNING CENTER WITH LIVE MILLING
NEW: 2000

SPECIFICATIONS:
SWING OVER BED ...................... 21.7"
SWING OVER SADDLE ................... 15.4"
MAX. TURNING DIAMETER ............... 11.4"
MAX. TURNING LENGTH ................. 19.37"
X-AXIS TRAVEL ....................... 8.1"
Z-AXIS TRAVEL ....................... 22.8"
SPENDLE SPEED ....................... 4500 RPM
SPINDLE NOSE ........................ A2#6
C SPINDLE INDEX ANGLE ............... 0.001 DEG.
SPINDLE BORE DIAMETER ............... 2.99"
DRAW TUBE ID ........................ 2.6"
NUMBER OF TOOL STATIONS ............. 12
OD TOOL SIZE ........................ 1"
BORING BAR DIAMETER ................. 1.5"
INDEXING TIME ....................... 0.1 SEC.
MILLING SPINDLE SPEED ............... 6000 RPM
RAPID TRAVERSE RATE X/Z ............. 945/1200 IPM
TAILSTOCK QUILL DIAMETER ............ 3"
TAILSTOCK QUILL TRAVEL .............. 3.15"
SPINDLE DRIVE MOTOR ................. 20 HP
MILLING SPINDLE MOTOR ............... 5 HP
APPROX. FLOOR SPACE ................. 118" X 66"
APPROX. WEIGHT ...................... 9,450 LBS.

EQUIPPED WITH:
- FANUC 18iTB CNC CONTROL
- FULL C-AXIS
- TOOL PRESETTER
- 8" KITAGAWA CHUCK
- PARTS CATCHER
- 12 POSITION TURRET
- TAILSTOCK
- ALL AVAILABLE LIVE TOOLHOLDERS
- ALL AVAILABLE STANDARD TOOLHOLDERS
- ALL AVAILABLE MANUALS
