☑️06 - Branch, Node and Loop of a given circuit
In this lesson we shall learn how to determine the number of branches, nodes and independent loops in a circuit.

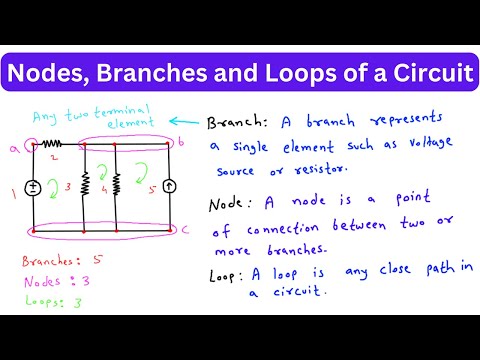

Branch: any two terminal device or a single element. eg voltage source, resistor, capacitor
Node: a point of connection between two or more branches.
Loop: any closed path in a circuit.
Independent loop: a loop that contains at least one element which is not part of another independent loop.
00:24 - Branch
01:67 - Node
02:46 - Loop
06:40 - Question 1
08:46 - Question 2
10:16 - Question 3
Playlists on various Course
1. Applied Electricity
2. Linear Algebra / Math 151
3. Basic Mechanics
4. Calculus with Analysis / Calculus 1 / Math 152
5. Differential Equations / Math 251
Make sure to watch till the end.
Like, share, and subscribe.
Thank you.
In this lesson we shall learn how to determine the number of branches, nodes and independent loops in a circuit.
Branch: any two terminal device or a single element. eg voltage source, resistor, capacitor
Node: a point of connection between two or more branches.
Loop: any closed path in a circuit.
Independent loop: a loop that contains at least one element which is not part of another independent loop.
00:24 - Branch
01:67 - Node
02:46 - Loop
06:40 - Question 1
08:46 - Question 2
10:16 - Question 3
Playlists on various Course
1. Applied Electricity
2. Linear Algebra / Math 151
3. Basic Mechanics
4. Calculus with Analysis / Calculus 1 / Math 152
5. Differential Equations / Math 251
Make sure to watch till the end.
Like, share, and subscribe.
Thank you.
