[FOR SALE] Krauss Maffei KM 80-380 CX

[FOR SALE] Krauss Maffei KM 80-380 CX

👇 DETAILED DESCRIPTION 👇 DETALJAN OPIS 👇

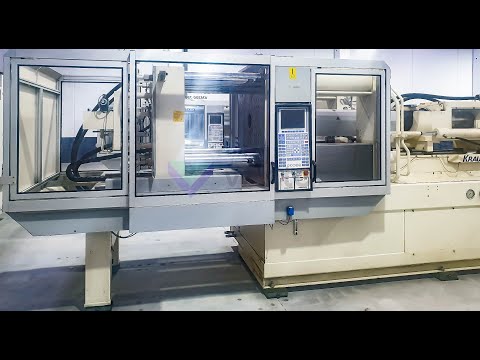

[FOR SALE] Injection molding machine

Clamping unit

Clamping force 800 kN
Size of mould platens (h x v) 670 mm x 670 mm
Distance between tie bars (h x v) 420 mm x 420 mm
Mould opening stroke 500 mm
Mould height min. 250 mm
Max daylight 750 mm
Hydraulic ejector - stroke 150 mm
Ejector force forward/backward 22,6 / 9,9 kN

Injection unit

Screw diameter 40 mm
Ls/D ratio 20
Injection pressure 1860 bar
Stroke volume 201 ccm
Shot weight, PS 183 g
Injection rate 126 ccm/s
Screw speed 295 1/min
Plasticising rate max. 21,8 g/s
Nozzle pressure 50 kN

Accessories

- Anti vibration pads
- Motan single component feeding and volumetric masterbatch feeding

Dimensions und weights

Dimensions of the machine ca. 4,1 m x 1,5 m x 2,02 m
Total machine weight 3800 kg
Max. mould weight 995 kg
Year of production 2012

Business enquiries via email at:

[NA PRODAJU] Mašina za PET (plastične) čepove za PET boce (topljeno oblikovanje ubrizgavanjem u kalupe) sa anti vibracionim podlogama i sistemom za unos poluproizvoda

Mašina: Krauss Maffei KM 80-380 CX
Dodatak: anti vibracione podloge
Dodatak: sistem za unos poluproizvoda / sirovine

Upiti i kontakt na imejl:

Mladegs Pak web:

#KraussMaffei #InjectionMolding #PETcapBottle
