Raspberry Pi ADC121C021 I2C Analog to Digital Converter Python Tutorial

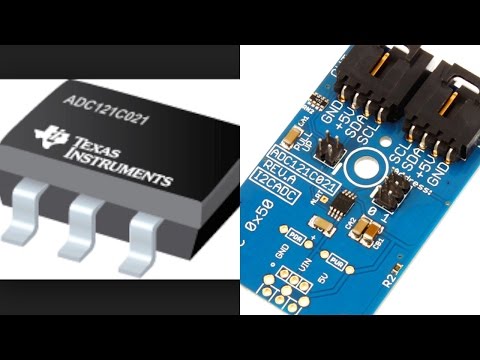

ADC121C021 1-Channel 12-Bit 188.9K Samples per Second Analog to Digital Converter ADC with 9 Addresses I2C Mini Module.The ADC121C021 is a low-power, monolithic, 12-bit, analog-to-digital converter (ADC) that operates from a +2.7 to 5.5V supply. The converter is based on a successive approximation register architecture with an internal track-and-hold circuit that can handle input frequencies up to 11MHz. The ADC121C021 operates from a single supply which also serves as the reference. The device features an I2C-compatible serial interface that operates in all three speed modes, including high speed mode (3.4MHz).
Applications :- System Monitoring, Peak Detection, Portable Instruments, Medical Instruments, Automotive & Test Equipment.
