Vectric V10.5 Tutorials | Level Clipping 3D Assembly

***PLEASE NOTE: This Tutorial was created to demonstrate the features in V10.5 which is no longer the current software available, and is here for reference to customers using V10.5. Please refer to the latest software playlist for the current set of tutorials.***

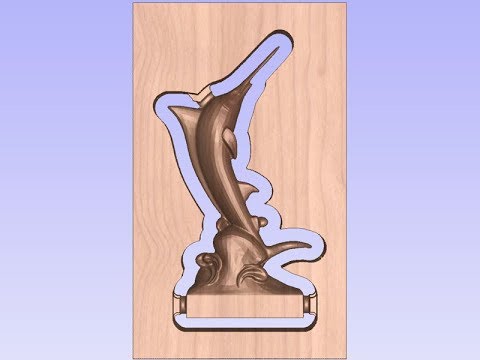

Level Clipping is a "level effect" that allows you to clip content of a level based on a selected or selection of closed vectors. Level Clipping is a way of hiding parts of the level without permanently cropping the content.

This level effect is perfect for clipping away or none destructively removing parts of 3D content. In this video, we will look at how this level effect works and create two examples of how it can be used to expand the possibilities of your 3D clipart.
