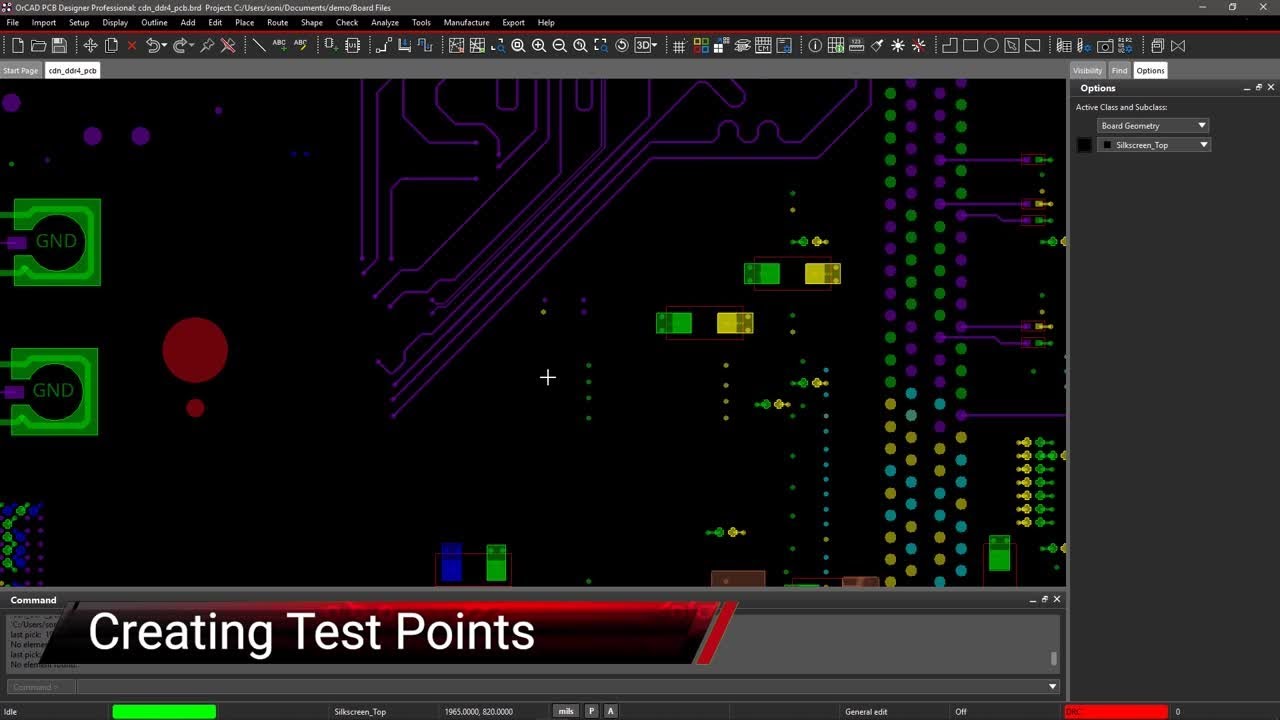

How to create test points in PCB | OrCAD PCB Designer

Your responsibility as the PCB designer continues after manufacturing to ensure design testability in the field. There should be an easy way to create test points in PCB for functional and in-circuit testing. With OrCAD, it’s easy to add and modify test points at selective locations in your design.

Disclaimer:

This video may have been recorded prior to changes made to the product’s user interface, or the video may be based on an earlier release of the product. The concepts and workflows conveyed in this video still apply to the current release of the product.
