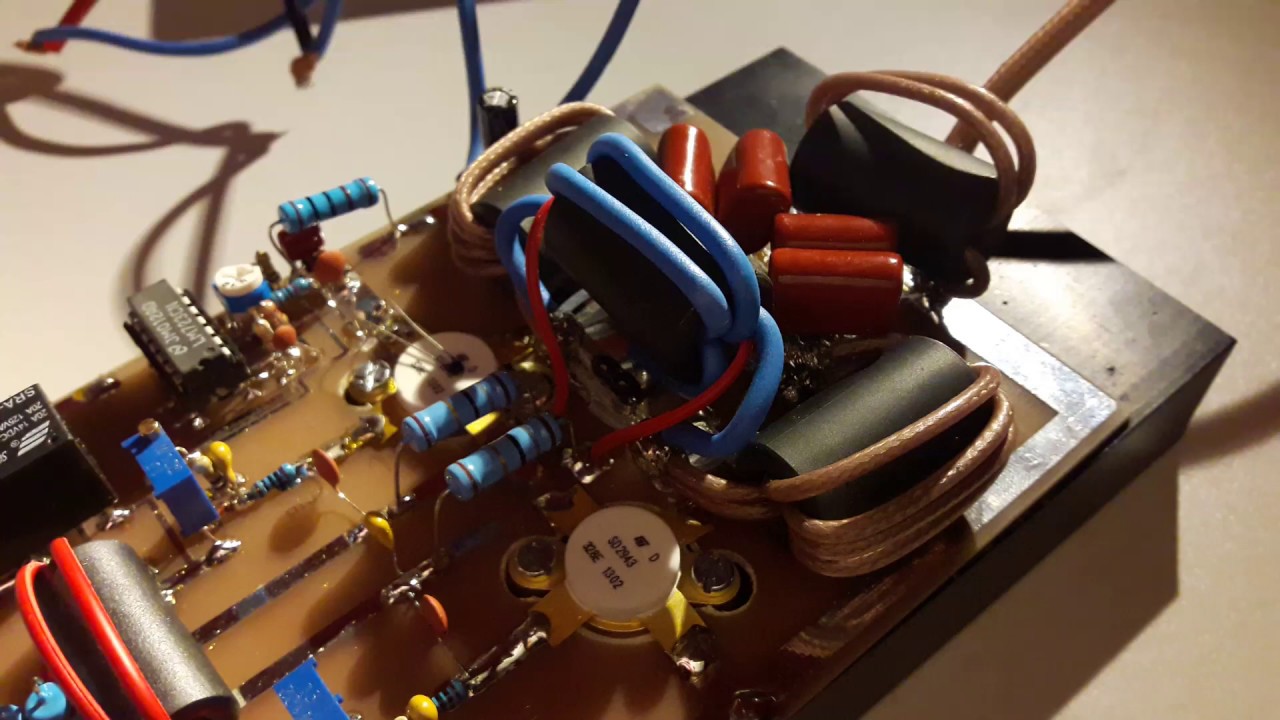

HF LINEAR AMPLIFIER 600W SD2943
Показать описание
HF LINEAR AMPLIFIER 600W
Test:
RF input: 15w
RF output: 600w
power supply: 52V/25A
Meter Daiwa CN-801 2KW scale PEP
mounted on small heatsink just for the test
specs:
Freq: 1.5-30MHz
power supply: 48-55V/25A
IN/OUT impedance 50 OHM
Auto bias switch
mosfets 2x SD2943 push pull
Class AB
Thank you 73s
Test:
RF input: 15w
RF output: 600w
power supply: 52V/25A
Meter Daiwa CN-801 2KW scale PEP
mounted on small heatsink just for the test
specs:
Freq: 1.5-30MHz
power supply: 48-55V/25A
IN/OUT impedance 50 OHM
Auto bias switch
mosfets 2x SD2943 push pull
Class AB
Thank you 73s
