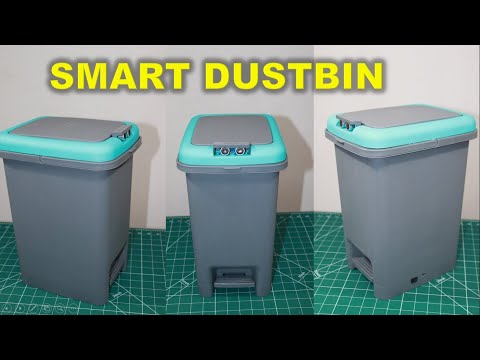

How to make Smart Dustbin with Arduino | Arduino Project

Here we will make a Smart Dustbin by using arduino and ultrasonic sensor.
I hope you guys enjoy learning this project.

Buy Stuff here:

individual Components used:

[IndianLifeHacker]

I hope this video will be helpful for your next science project.

Buy Stuff here:

[n.trockers]

Just because of this project we got 1st prize in our competition thank you

[lemredd]

Thank you for your help! I have a correction for the schematic tho.

Servo motor's volt pin should be plugged at 5v and sensor to 3.3v.
otherwise, the motor would be slow.

hope this helps anyone who faced the same slow motor problem as me 🙂

[subhanasif]

Absolutely Amazing!
This is the code for this dustbin:

#include <Servo.h> //servo library
Servo servo;
int trigPin = 5;
int echoPin = 6;
int servoPin = 7;
int led= 10;
long duration, dist, average;
long aver[3]; //array for average


void setup() {
Serial.begin(9600);
servo.attach(servoPin);
pinMode(trigPin, OUTPUT);
pinMode(echoPin, INPUT);
servo.write(0); //close cap on power on
delay(100);
servo.detach();
}

void measure() {
digitalWrite(10, HIGH);
digitalWrite(trigPin, LOW);
delayMicroseconds(5);
digitalWrite(trigPin, HIGH);
delayMicroseconds(15);
digitalWrite(trigPin, LOW);
pinMode(echoPin, INPUT);
duration = pulseIn(echoPin, HIGH);
dist = (duration/2) / 29.1; //obtain distance
}
void loop() {
for (int i=0;i<=2;i++) { //average distance
measure();
aver[i]=dist;
delay(10); //delay between measurements
}


if ( dist<50 ) {
//Change distance as per your need
servo.attach(servoPin);
delay(1);
servo.write(0);
delay(3000);
servo.write(150);
delay(1000);
servo.detach();
}
Serial.print(dist);
}

[evqn]

Not the man we needed but the hero we deserved! Thank you for helping me with my school projects. I credited you in my powerpoint presentation.

[sonu]

I became 1st in my state level project competition because of this exact project☺️

[adikind]

Thank You. I am actually 8th grade and i wanted to learn robotics.
Today Finally because of teacher like you I learnt. Thank you once Love from Karnataka

[hassanshayan]

You are the future of india brother hatts off

Love from.Pakistan

[ScitiveX]

Very Simple and nice arduino project. Thank for sharing.

[rabbyahmed]

Thank you bro, very Nice, Easy, attractive and hope you will bring many more for us🇧🇩🇧🇩🇮🇳

[zgamingzonewithps]

Thanx because of your project I got an certificate in my electrical project

[Manjar_premi]

Because of this I won first prize in a competition. So thank you!!!

[hdr_songs]

Shukriya bhai apki coding ki wajah se project mai mujhe ache marks mile mujhe thanku sirrr

[surabandanasahu]

With the help of the USB 2.0 cable given with the arduino board, connect it with the arduino to the power bank

[mr.octopie]

Really loved the video! thank you for making it, it was very practical for my every day life to have an automatic bin!

[bhavyagoel]

Bhai Kamal ki hai
Maina bhee banaya hai, working perfectly!

[aayush]

Nice project but u can make it much cheaper by using arduino nano or attiny 45 in place of uno and in place of servo you can use small dc motor with lid stopper. It will cost you around 300 or less. And to make it more innovative you can use rechargeable battery with a little solar panel to make it more independent. Good work 👍

[MRINDIANHACKER]

Hi bro i hope you are doing well.... So i just wanted to talk with you if it is possible so please let me know on my mail id.... Regards Mr. Indian hacker

[akshit]

Everytime when i see this video, it helps me a lot :'( ty

[krishivpimpale]

Because of your project I got first prize in my robotics competition
