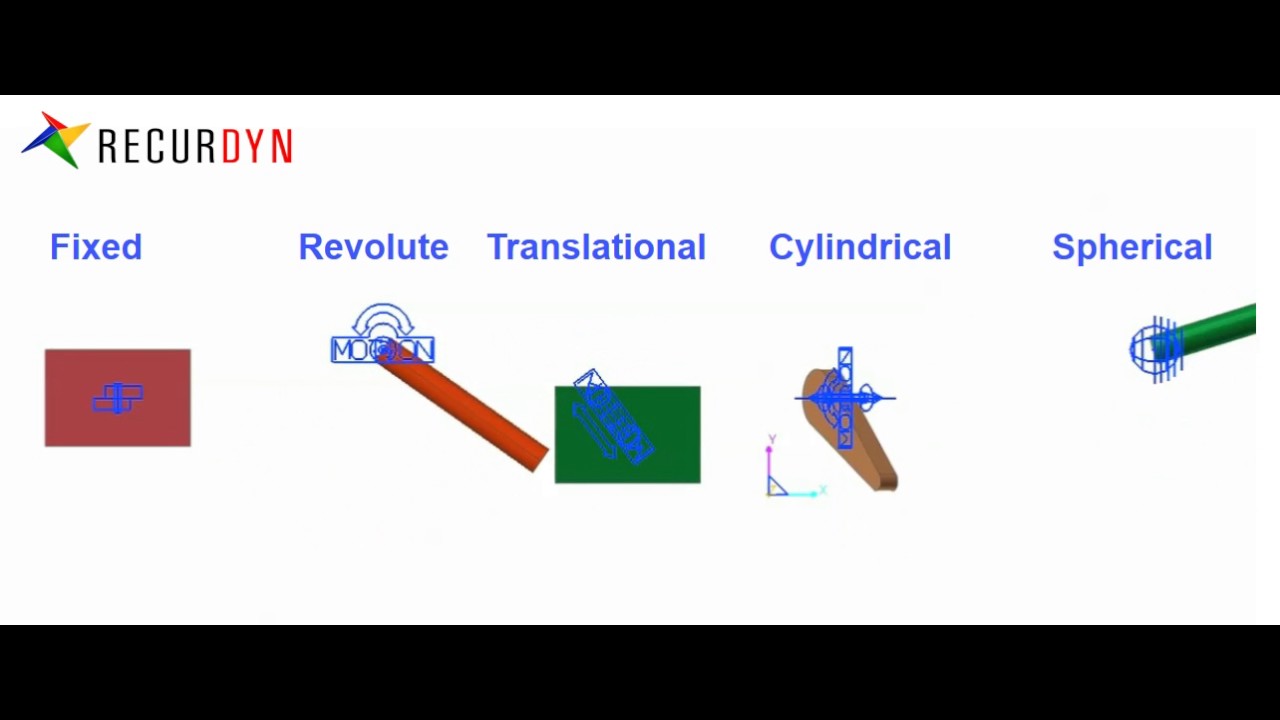

"This video shows some examples of the joints in RecurDyn.
1) Fixed Joint: fix the body.
2) Revolute Joint: 1 DOFs (1 rotational DOF)
3) Translational Joint: 1 DOFs (1 translational DOF)
4) Cylindrical Joint: 2 DOFs (1 rotational and 1 translational DOFs)
5) Spherical Joint: 3 DOFs (3 rotational DOFs)
Other general joints available in RecurDyn are for example "Planar", "Screw" and "Universal" Joints, as well as a "Constant Velocity".
