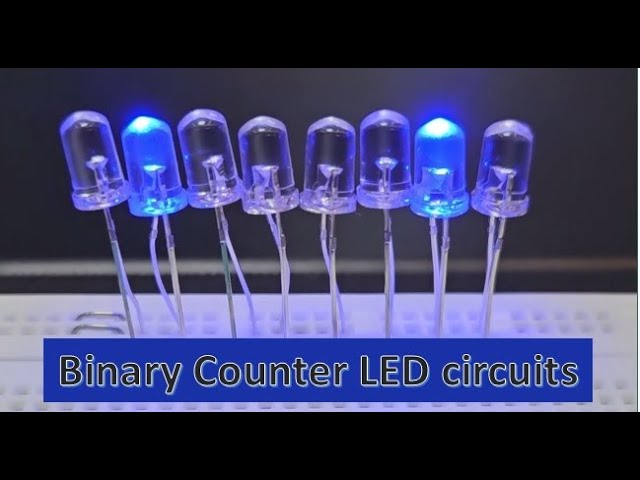

design of 8-bit LED Binary Counter on breadboard with 40193 ICs, 8 Leds chaser using binary values
Показать описание
In this circuit, an 8-bit binary counter is designed using 8 LEDs. Two IC CD 40193 are responsible for the counter. By connecting the carry pin of the first IC to the clock pin of the second IC, the counter counts as 8 bits. IC 555 is used to clock the first counter.
Required parts:
IC 555: 1 pcs
IC 40193: 2 pc
RGB LED: 8 pcs
1 KΩ resistor: 2 pcs
270Ω resistance: 8 pcs
10 kΩ Potentiometer: 1 pc
22 μF capacitor: 2 pcs
Push button:1 pc
