GANNOMAT INDEX 130 TREND CNC Bore, Glue & Dowel Inserter

GANNOMAT INDEX 130 TREND ... CNC Bore, Glue & Dowel Inserter
(GD-010807)

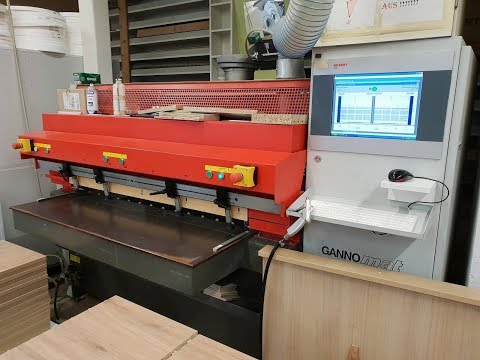

The GANNOMAT "Index 130 LOGIC" is a CNC Controlled Point-To-Point Drilling/Gluing/Dowel Insertion Machine for variable programming of boring patterns.
X-Axis CNC controlled via precision ball screw Servo drive, Y- & Z-axis adjusted via mechanical spindles, set by manual digital indicators.
Working width of 1,300 mm (51") x 3/4" - 7-3/4" width x 1/2" - 3-1/8" material thickness with (2) fields, LH/RH (mirror-image).
(8) Vertical hold-down cylinders for horizontal part processing.
Dowel driving & horizontal boring integrated into (1) station; the dowel driving unit is located along side the boring station; both units are mounted on (1) support.
Horizontal drilling & boring station head setup for 6 - 8 or 10 mm, dowel length from 25 - 50 mm.
Doweling Station includes: Vibrating hopper; insertion head & dowel driving with air impulse; setup for 8 mm dia. x 50 mm long dowels.
Glue valves controlled individually at control cabinet, central adjustment for the amount of glue by means of digital timer.
Operating System, MS-XP & GANNOMAT production software; 15" color touch-screen monitor interphase, USB drive, bar code capable.
Controller & Drive: BECKHOFF "C3620 TWINCAT V2.10", complete with (1) glue tank, (1) water tank, auto-lubrication system, and all original manufacturer's machine documentation..
