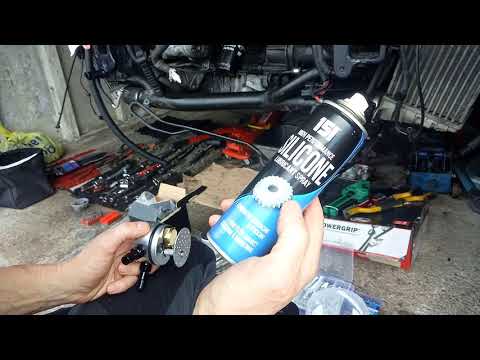

Audi TT MK1 Catch Can Installation 1.8t 20v BAM

This is the kit that Cloude 9 Customs supply. The customer wanted me to remove all PCV and brake booster related pipes from under the intake manifold due to leaks. This can have a slightly negative effect on the amount of vac assist the brake servo recieves, but other variants like the APX run fine without that system ever being there, so don't worry too much for normal road driving.
key point is mounting the catch can at a good height, you don't want it too low which is why i use the position in the video.

[lxapproduction]

Nice one, but doing 95% one-handed is what impressed me the most ^^

[Kulichmedia]

Finally found a proper video of a proper crank ventilation! Thumbs up, man.

[cwsgm]

no hasltle directions and one handed skills earned a sub.

[stevesloan]

2022... Great footage of all those hard to get too hoses.
My TT is on a hoist at the moment,
Thankful for that invention.
Full 1-2nd selector fork pin snap and reverse gear damage.
Dremel tool the reverse gears.. and the latest revision of the 6 speed selector forks.
My flex coupling was destroyed and half my front swayer was missing.
Ground away and I didn't even hear it.
Might of been the previous owner, before last half fix.

[simongoodwin]

Thanks for the top advice, made the job really easy

[stevesloan]

It would be cool if you use the YouTube tools to put a linked comment to the upload that explains “the merits of deleting and not deleting” like you talk about in this upload.

Love your work!!!

I’ve learned so much about my TT from you.

Top shelf man!

🇦🇺🤜🏼🤛🏼🍀😎

[blakkno]

My TT is remapped with decat, miltek, and piperx filter. Was getting 27.3mpg since the mods. Did this catch can install, now getting 32.3mpg! Not driving any different... Definitely worth the money 👍
Cheers to cloud 9 too

[brettgiles]

Do they make an inline setup to keep the vacuum source? I’ve found after removing vacuum sources on the 1.8t you get the white sludge build up on the oil cap and etc. This setup would only stop oil vapors from getting into your intake tube and remove a single hose and check valve but at a sacrifice, if you don’t have a vacuum source your no longer going to have the moisture and blow by crap being sucked out of your crankcase and valve cover and you’ll get that crap built up in the valve cover. Also with the setup you had just shown you actually no longer need the crankcase pressure regulating valve since it limits vacuum flow and pressures through the crankcase and the vacuum source is now capped off. Unless you were just using it as a barb to connect 2 female hoses. J.W. Thanks

[George-wswr]

I personally had A LOT of fun renewing various pipes and hoses on my AUM 1.8T. What started off as a breather hose turned into the whole lot being renewed. Basically Audi's of this age are a can of worms and if your gonna buy one as a project be prepared to renew a lot of these parts.

Good vid, considering a catch can install now.

Cheers 🤙

P.s. get a chest mount for your camera 😅

[bendiking]

Thank you dude, you just save me so much time and money. respect!

[haggismuncher]

I wish I had seen this before I just ordered all that pipe work that goes under the intake would have been cheaper doing this thanks for the vid

[jaydonmaytum]

Great video mate 👍 dont suppose you know the size of the p clips holding the can to the bar?

[cretivegarage]

This a definitely a great content making channel love the videos you bring and we appreciate the hard work 😎

[lkz]

I did this job exactly like shown in the video with the same catch can and now I have a sound coming from the engine that sounds like a horn, from around 2500-3500rpms. I can't figure out what is causing the noise. Sounds almost like a trumpet.

[rhysdavies]

How do you “creatively destroy the rest of the tube and that brass ring? I’m stuck 😅

[lkz]

What does the relay do that gets moved next to the wiring harness?? Just curious....

[jnrsmooth]

Great video mate thanks for doing it I just bought Billy's catch can kit for my apx 225 can I ask what's different in the procedure from the bam 👍🏼

[youngstayoung]

Basically the hardest bit is getting the old pipes off. Might beable to do this if can get my hands in

[southard]

where you have it coming off hockey puck is that going back to the tip or is it going to the floor

[tiansanderson]

If a small piece of the plastic drops in the hole should i be worried or does it go straight to the sump which i can just clean out the sump?
