Bare&Basic ZVS Circuits of all shapes and sizes.

This is a video how how to make many forms of ZVS ( Zero Voltage Switching ) with many common components. This is not a direct tutorial but a guide to real life design and troubleshooting.
Some things I stated a little strange a few thing stated wrong, some mistakes are present. It's almost like I am human too.

This is a LONG video and had a lot of verbal and observational information in it, but if you struggle to make your own ZVS I do very much hope this video helps you.

There will be many circuits made in this video for both step up and step down transformers as well as different wattage set ups as well.

Another thing to note is that I say transformers with a single primary coil are for full bridge configurations, while yes that is the way you run a transformer like that there are many other set ups that use a single wire primary transformers such as single mosfet switch mode PSUs and pulse transformers.

Video Timeline.
0-2min intro
2-21 min ZVS basic wiring and LED circuit testing and full load test.

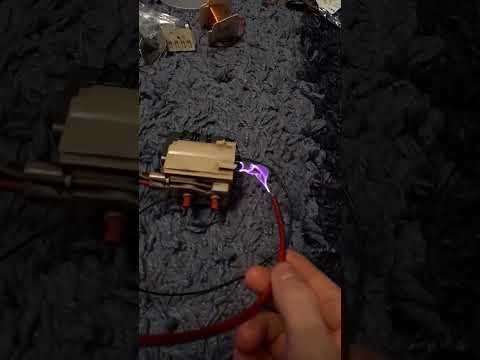

21-30min Fighting with the common horrible TV flyback
30-46min About to show you more, but instead is the smallest ZVS
45-60min Rewinding a large CCFL transformer for ZVS
1h-1h3m poorly explaining transformer primaries + secondary fail
1h3m-1h10m Powering up the large CCFL transformer!
1h9m-1h17m Let's make a high wattage step down transformer
1h17m-1h27 A bigger step down transformer and fire at JTTs!
1h26m-1h-37m Let's swap inductors + upcoming DIY idea!
1h37m-1h40m Thermally killing SMT mosfets
1h40m-2h8m Small SMT board ZVS and the Static Spayer
2h8m-2h11m The hunch that wouldn't hunt
2h11m-2h19m Easy tuning set up+balancing Resonant capacitor.
2h19m-2h27m Tuning set up+more inductor test+spike failure
2h27m-2h33m How to test for bad mosfets effectively.
2h33m-2h39m Changing resistor values and what it effects.
2h39m-end Where are these parts, what do they do and look like?
